Power steering box - LHD - diesel (page 3 of 4)
- Make
- Land Rover
- Model
- Discovery II (UK)
- Section
- Repairs
SteeringPower steering box - LHD - diesel · page 3 of 4

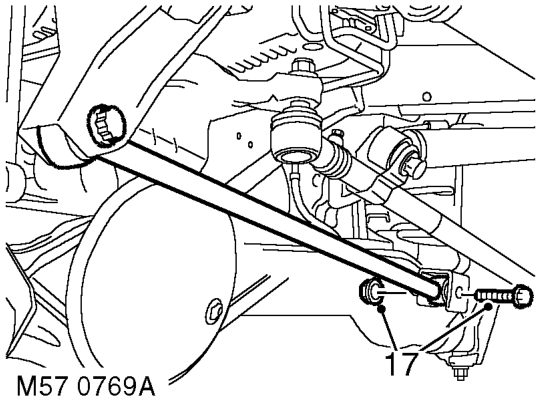

- Remove securing nut and bolt and release Panhard rod.
- Models with ACE:

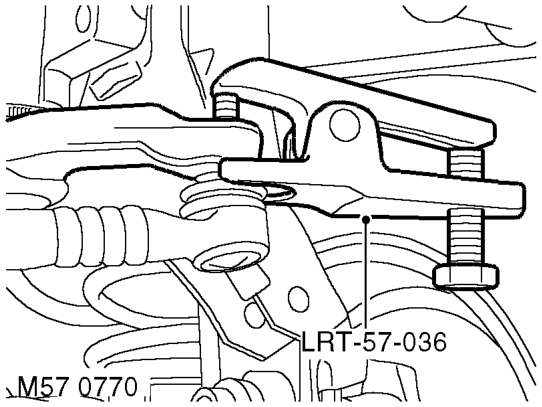

- Remove nut securing drag link to drop arm. Using LRT-57-036, break taper joint and release drag link.

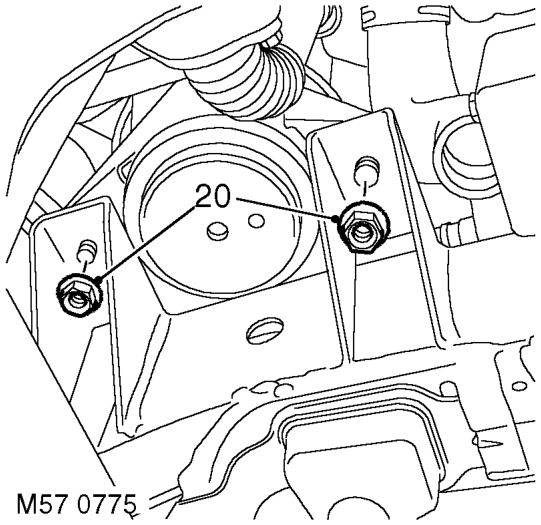

- With assistance, remove 2 nuts and bolts

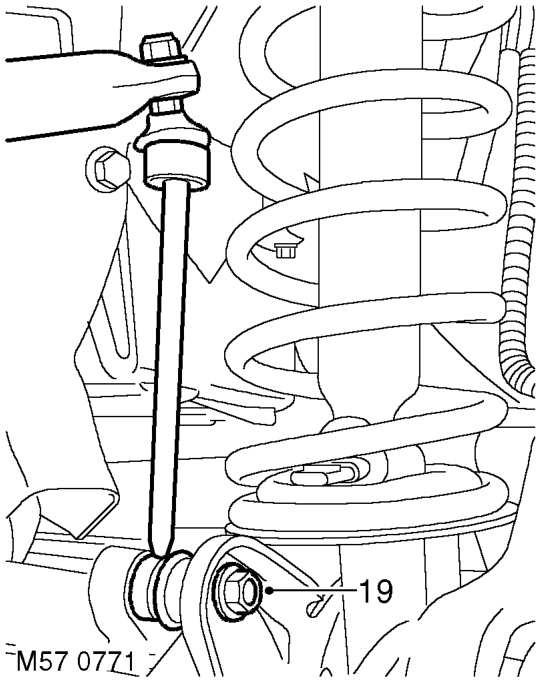

Remove nut securing antiroll bar link lower ball joint and release joint.
securing LH engine mounting to chassis.
