SteeringShaft - intermediate and universal joint - · page 2 of 3

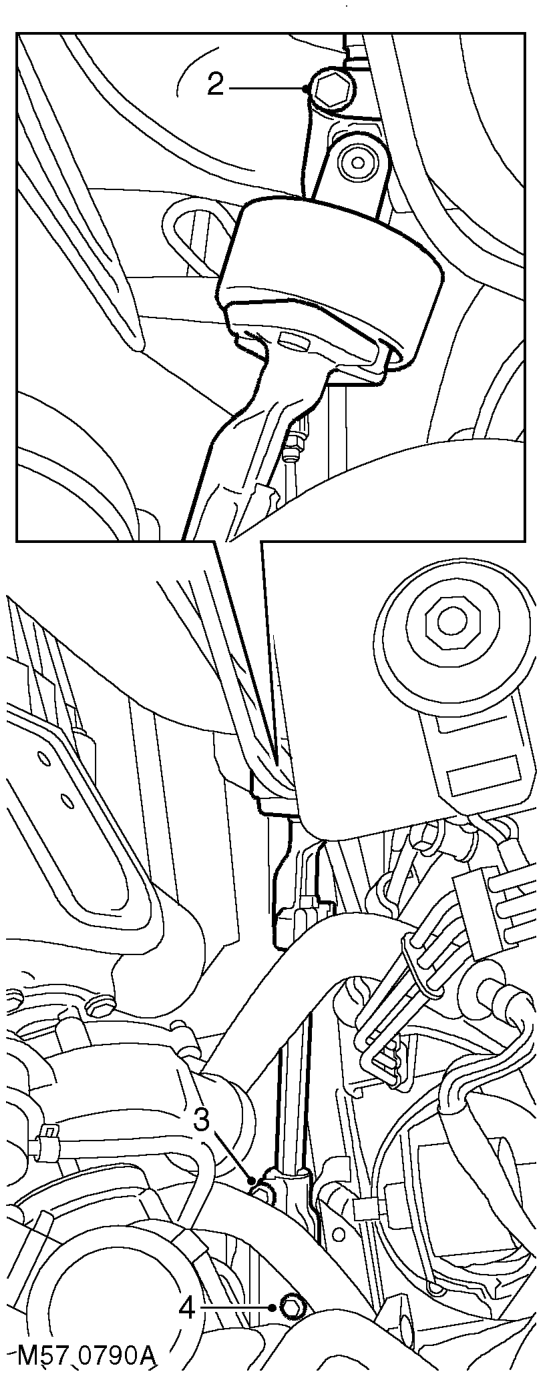

Diagram
  1. Remove bolt securing intermediate shaft to steering column.
  2. Remove bolt securing intermediate shaft to universal joint.
  3. Universal joint: Remove the bolt securing the universal joint to the steering box.

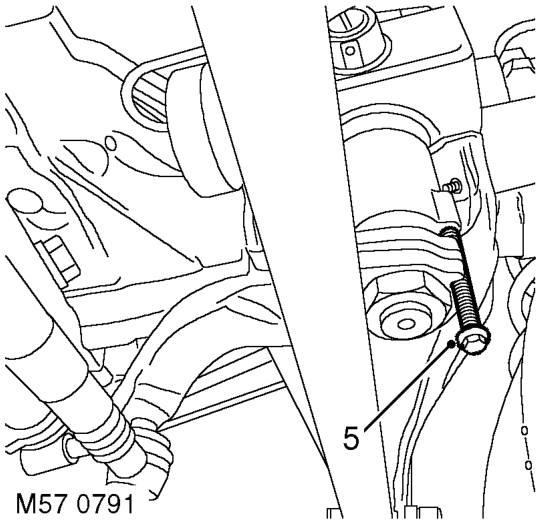

Universal joint: Remove the bolt securing the universal joint to the steering box.
  1. Ensure steering wheel is in the straight ahead position and fit centralising bolt to steering box. Remove the key from the ignition switch

CAUTION: Do not turn the steering wheel with the intermediate shaft or universal joint disconnected as damage to the rotary coupler and the steering wheel switches may occur.
