8. Remove 2 trim clips securing RH side trim casing to body.
9. Remove rear lamp access panel from RH side trim casing.
10. Remove trim clip securing RH side trim casing to lower 'E' post.
11. Models with third row seats:Remove bolt securing lower mounting of RH third row seat belt to body.
12. Remove RH side trim casing.
13. Pull back loadspace carpet from fuel pump access panel.

17. Use
18. Remove fuel pump housing.
19. Remove and discard sealing ring from fuel

Refit

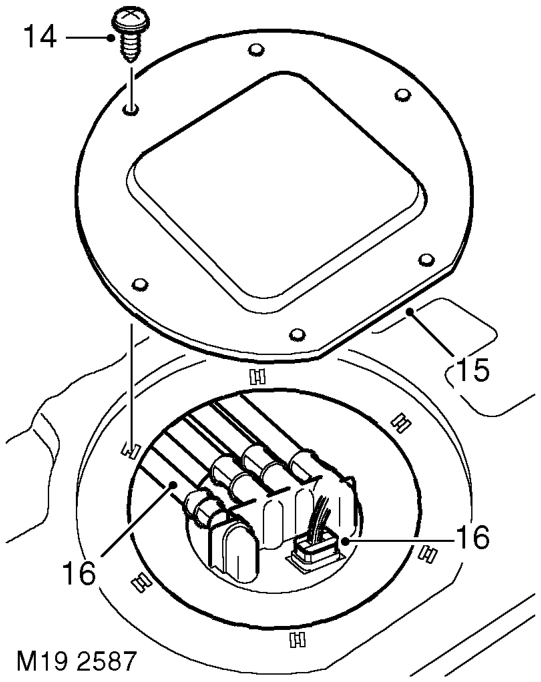

14. Remove 6 screws securing access panel.
15. Remove access panel.
16. Disconnect multiplug and 4 fuel hoses from fuel pump housing.
10. Fit rear lamp access panel to RH side trim

CAUTION: Always fit plugs to open connections to prevent contamination.

11. Fit trim clips securing RH side trim casing to
12. Fit tail door aperture seal.
13. Models with rear ICE controls:
14. Models with rear ICE controls:
15. Fit trim clips securing lower edge of 'D' post
16. Models with third row seats:
17. Connect battery earth lead.

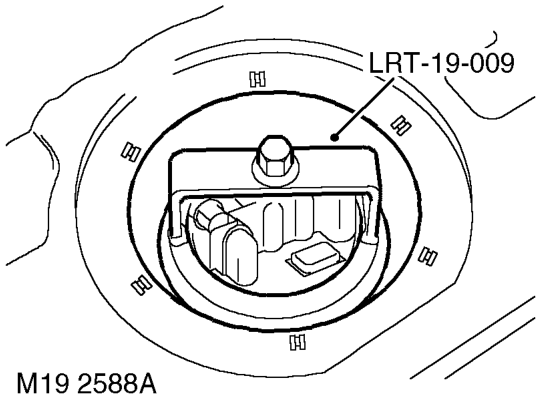

LRT-19-009 to remove locking ring from fuel pump housing.

pump housing.

1. Clean fuel pump housing and mating face on fuel tank.
2. Fit new seal to mating face on fuel tank.
3. Fit fuel pump housing to fuel tank and use LRT- 19-009 to fit locking ring.
4. Connect multiplug and fuel hoses to fuel pump housing. Ensure each hose is installed in the connector with the corresponding colour code.
5. Fit access panel and secure with screws.
6. Reposition loadspace carpet.
7. Fit RH side trim casing.
8. Models with third row seats:Fit bolt securing lower mounting of RH third row seat belt to body and tighten to 50 Nm (37 lbf.ft).
9. Fit trim clip securing RH side trim casing to lower 'E' post.

casing.

body.

Connect multiplug to remote ICE controls. Fit ICE controls to trim casing and secure with screw.

trim casing to body. Fit RH third row seat. SEATS, REPAIRS, Seat - third row.
