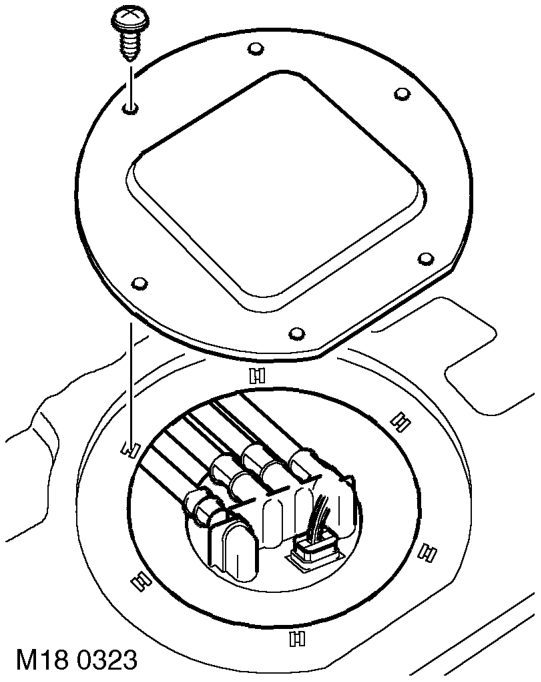

Fuel tank sender unit (Instruments)
- Make
- Land Rover
- Model
- Discovery II (UK)
- Section
- Description and operation › Fuel tank sender unit
InstrumentsFuel tank sender unit
Fuel tank sender unit
The fuel tank sender unit is combined with the pump. It contains a variable resistor with change in resistance proportional to the change in level of fuel in the tank.
The resistance of the fuel tank sender unit in relation to tank contents and gauge display is shown in the table below:
| Tank contents | Sender resistance, ohms | Gauge display |
|---|---|---|
| Empty | 245 | 0 |
| Full | 19 | 1 |
The fuel tank sender unit input voltage feed is supplied from the fuel gauge. The earth path return circuit of the sender unit is connected to the instrument pack.
