Land Rover Discovery II (UK)56 · Navigation system
56 · General

Display unit

Make
Land Rover
Model
Discovery II (UK)
Section
Repairs › Display unit
Navigation systemDisplay unit

Refit

Display unit

$% 86.53.20

Remove

Display unit – $% 86.53.20

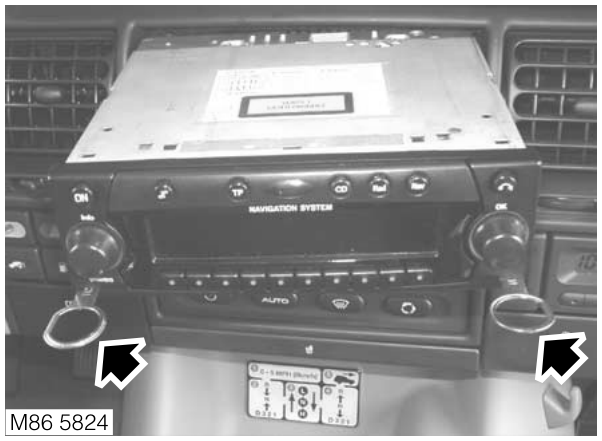

M86 5824

  1. Fit tool LRT-86-009 into slots ensuring correct handed key is in correct slot. The tools are stamped either 'TOP L' or 'TOP R', ensure the stamping is facing upwards when removing the unit.
  2. Pull display unit from fascia.

M86 5825

  1. Disconnect 3 multiplugs and 2 coax cables from display unit and remove unit.
  2. Push display unit retaining clips inwards and remove keys.
  3. Position display unit to fascia, connect multiplugs and coax cables.
  4. Push display unit into fascia until retaining clips engage.
  5. Enter security code and check system is operational.
