Interface electronic control unit (ECU) - remote control

$% 86.53.15

Remove

  1. Remove navigation display unit. NAVIGATION SYSTEM, REPAIRS, Display unit.
  2. Remove automatic temperature control unit. AIR CONDITIONING, REPAIRS, ECU - air temperature control.
Interface electronic control unit (ecu) - remote control – Remove automatic temperature control unit.  AIR CONDITIONING, REPAIRS, ECU - air temperat

M86 5760

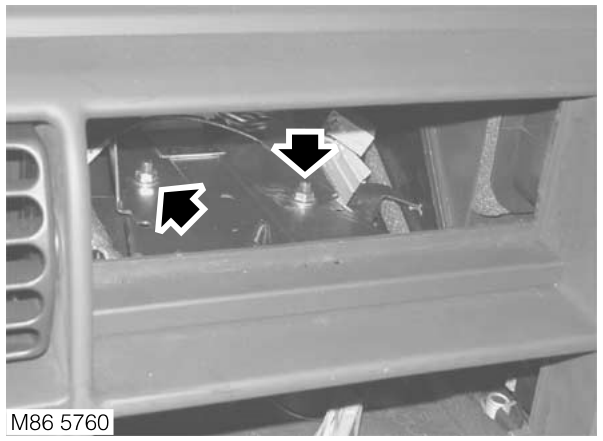

  1. Remove 2 nuts securing interface carrier bracket, carefully pull bracket out of fascia.
Interface electronic control unit (ecu) - remote control – Remove 2 nuts securing interface carrier bracket, carefully pull bracket out of fascia.

M86 5762

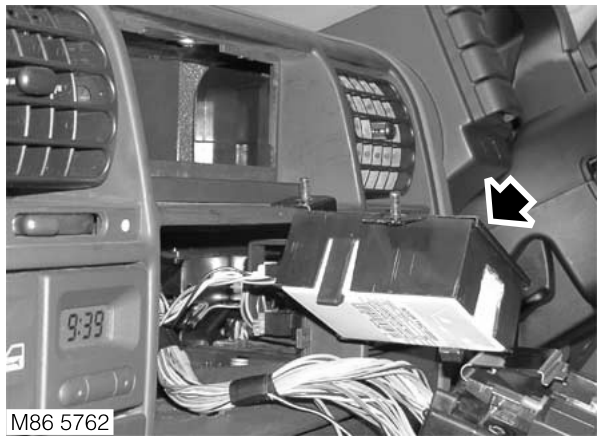

  1. Release interface ECU from bracket, disconnect multiplug and remove ECU.

Refit

  1. Secure interface ECU in bracket and connect multiplug.
  2. Carefully position carrier bracket in fascia, secure with nuts and tighten to 10 Nm (7 lbf.ft).
  3. Fit automatic temperature control unit. AIR CONDITIONING, REPAIRS, ECU - air temperature control.

4. Fit navigation display unit. NAVIGATION SYSTEM, REPAIRS, Display unit.
