Air conditioning (Display outputs): Description and operation

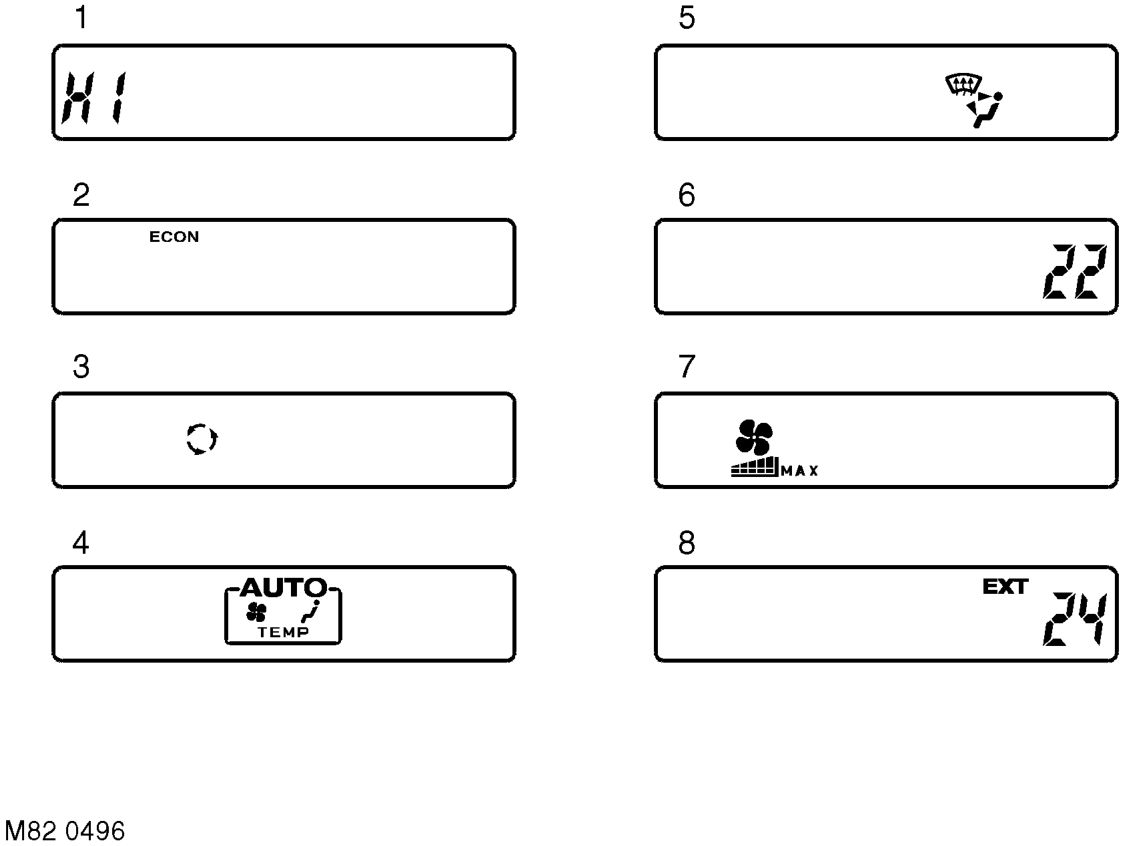

Display outputs

1 LH temperature 2 Economy mode 3 Recirculated air 4 Automatic mode

5 Manual distribution 6 RH temperature 7 Blower speed 8 External air temperature

Outputs on the display are shown at full brightness when the exterior lights are off, and dimmed when the exterior lights are on.

LH temperature. Illuminates to show the LH temperature selection, the temperature scale or that the ATC ECU is in diagnostic mode.

Economy mode. Illuminates when the compressor is manually selected off with the ECON switch.

Recirculated air. Illuminates when the inlet air is manually selected to recirculated mode.

Automatic mode. Illuminates the AUTO legend and related symbol(s) when the blower speed, air distribution or temperature control are in the automatic mode.

Manual distribution. Illuminates the appropriate symbol(s) to show the manually selected air distribution. Also illuminates in the automatic modes when one of the temperatures is set to LO or HI.
