Temperature and distribution control

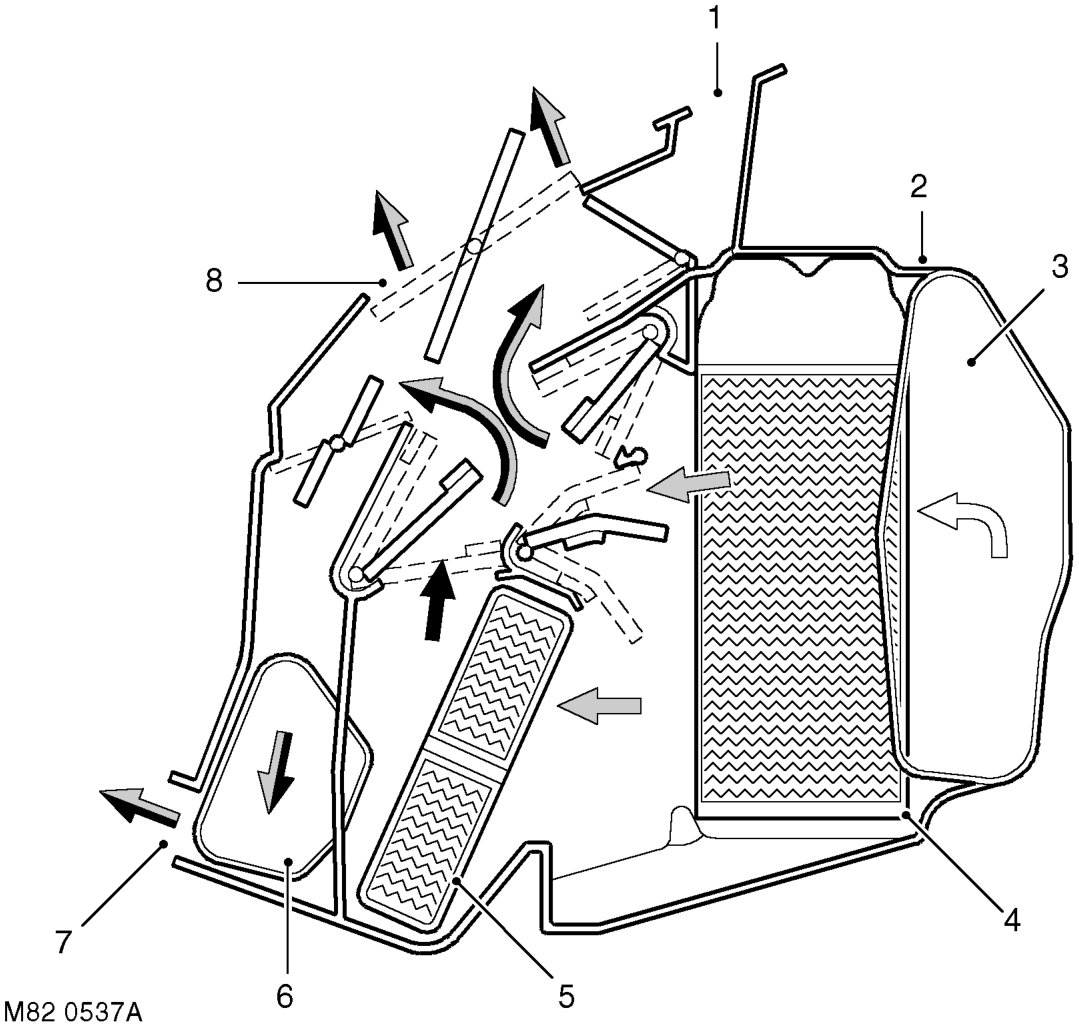

Figure shows flaps set for medium heat to face level and footwell outlets
1 Windscreen/Side windows outlet 2 Heater assembly casing 3 Air inlet 4 Evaporator 5 Heater matrix 6 Front footwells outlet 7 Rear footwells outlet 8 Face level outlet
