Sectioned view of FBH unit (Heating and ventilation)
- Make
- Land Rover
- Model
- Discovery II (UK)
- Section
- Description and operation › Sectioned view of FBH unit
Heating and ventilationSectioned view of FBH unit · page 1 of 2

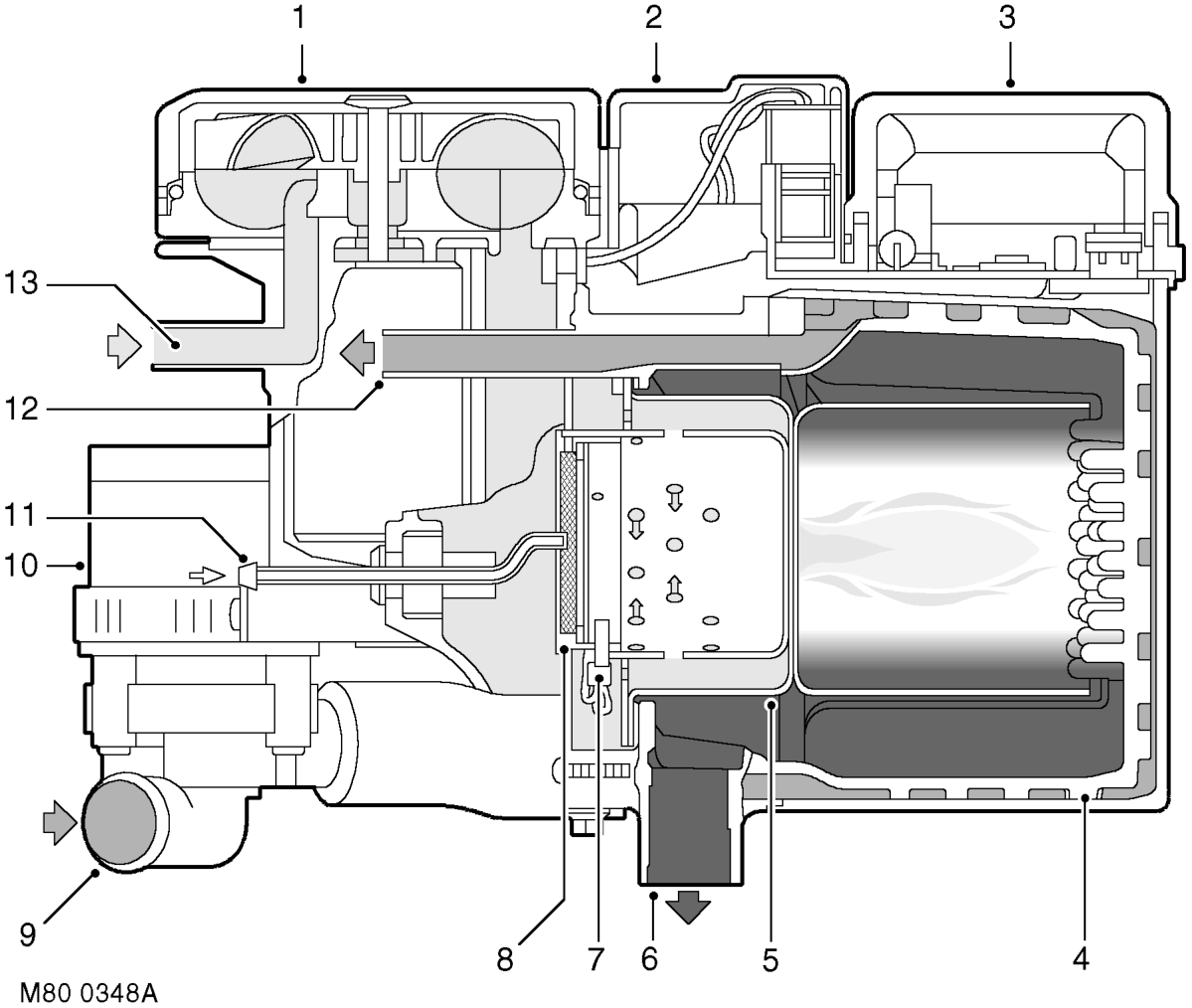

Sectioned view of FBH unit
1 Combustion air fan 2 Burner housing 3 ECU 4 Heat exchanger 5 Burner insert 6 Exhaust 7 Glow plug/flame sensor
The FBH unit consists of: l A circulation pump. l A combustion air fan. l A burner housing. l An ECU/heat exchanger. l An air inlet hose. l An exhaust pipe.
8 Evaporator 9 Coolant inlet 10 Circulation pump 11 Fuel inlet 12 Coolant outlet 13 Air inlet
