Fuel burning heater component layout (Heating and ventilation)
- Make
- Land Rover
- Model
- Discovery II (UK)
- Section
- Description and operation › Fuel burning heater component layout
Heating and ventilationFuel burning heater component layout

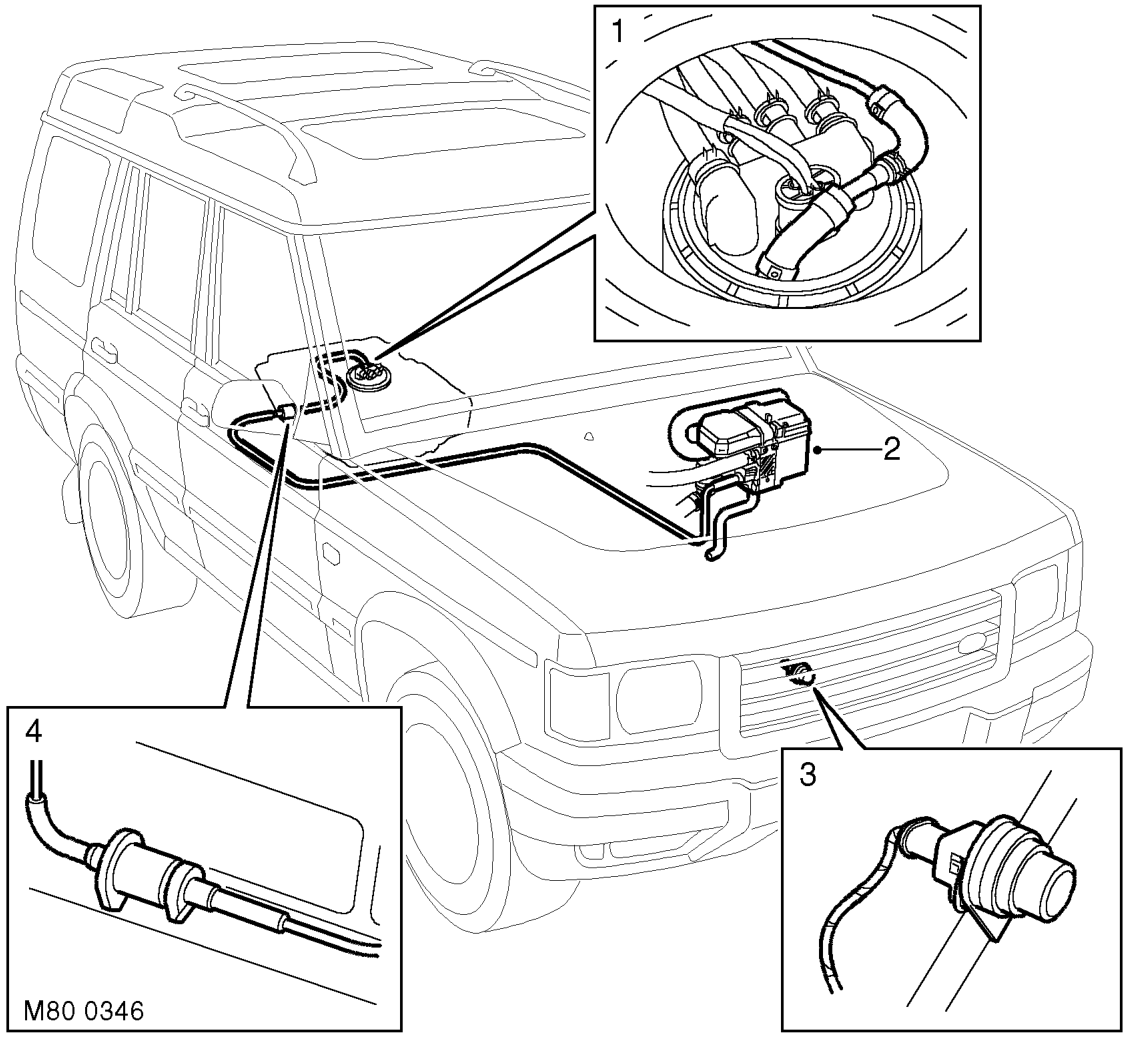

Fuel burning heater component layout
RH drive shown, LH drive similar
1 FBH fuel line connection 2 FBH unit 3 Air temperature sensor 4 FBH pump
