AUTOMATIC GEARBOX - ZF4HP22 - 24

44-50

REPAIRS

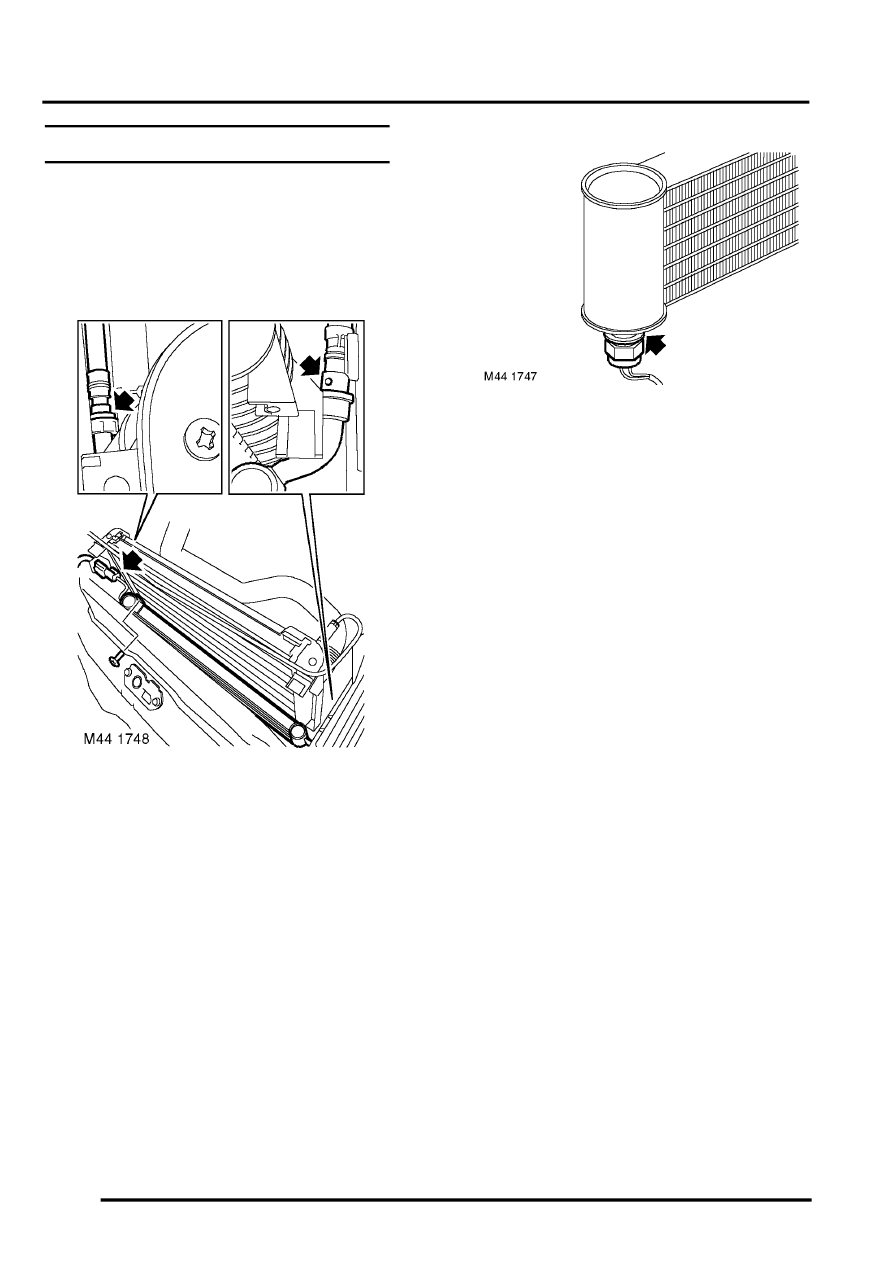

Cooler - fluid - V8

$% 44.24.10

Remove

1. If fitted: Remove engine oil cooler.



 +

 ENGINE - V8, REPAIRS, Cooler -

engine oil.

2. Disconnect fluid temperature sensor multiplug.
3. Position absorbent cloth under each gearbox

cooler hose connection to collect spillage.

4. Push against coupling release ring and

disconnect both fluid hoses from cooler.

CAUTION: Always fit plugs to open
connections to prevent contamination.

5. Remove screw and release cooler from

radiator.

6. Carefully move radiator towards engine and

remove cooler.

7. Remove temperature sensor and discard

sealing washer.

Refit

1. Use new sealing washer and tighten

temperature sensor to 14 Nm (10 lbf.ft).

2. Fit cooler, engage with radiator and secure with

screw.

3. Connect temperature sensor multiplug.
4. Ensure connections are clean and fit hoses to

cooler.

5. If fitted:Fit engine oil cooler.



 +

 ENGINE - V8, REPAIRS, Cooler -

engine oil.

6. Check and if necessary top up gearbox fluid.
