Discovery II
HEATING AND VENTILATION
REPAIRS
80-27
Motor - blower
$% 80.20.15
Remove

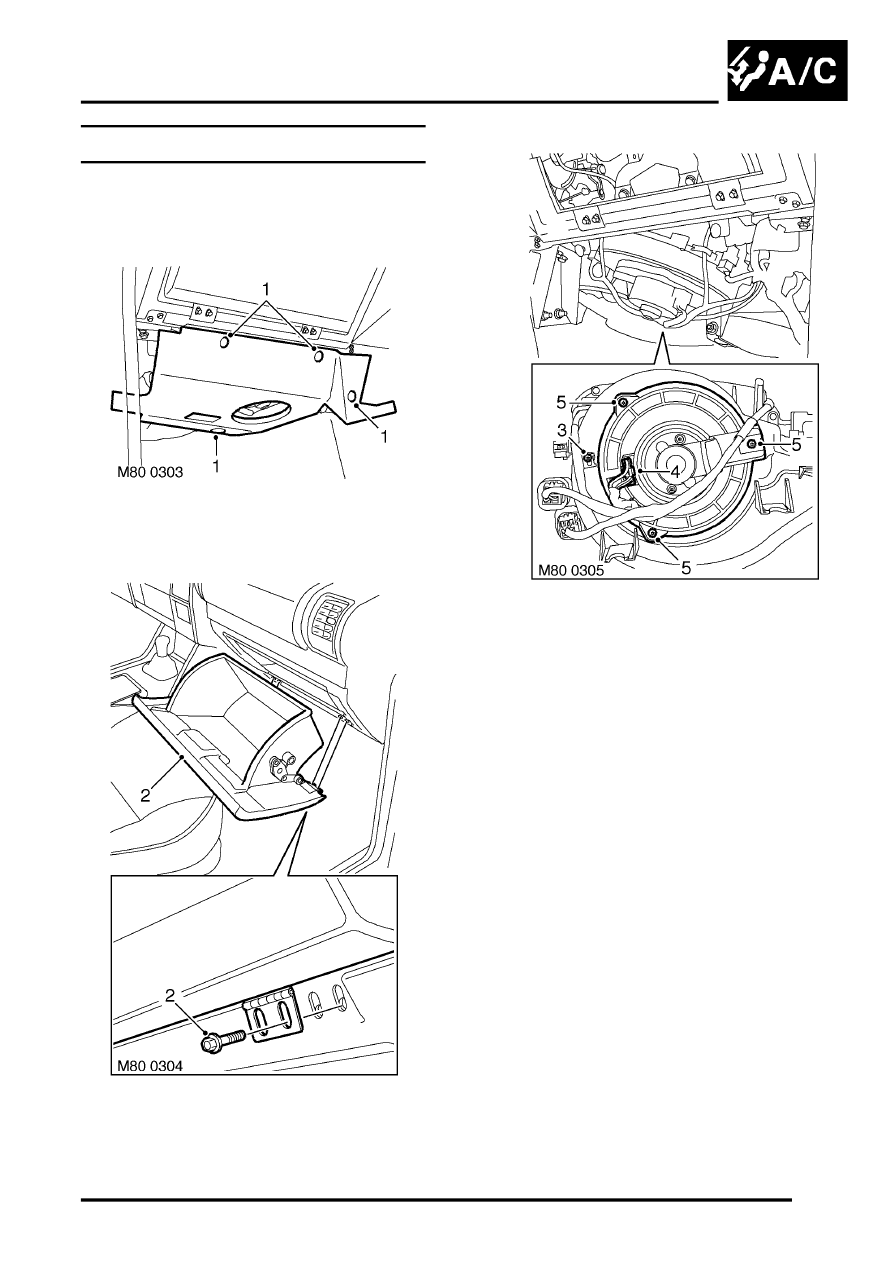

1. Remove 4 studs securing toe board and
remove toe board.
2. Remove 4 screws securing glove box, release
catch and remove glove box.
3. Remove screw securing harness to blower
motor and release harness.
4. Disconnect multiplug from blower motor.
5. Remove 3 screws securing blower motor to
casing and remove blower motor.
Refit
1. Position blower motor to casing and secure
with screws.
2. Connect multiplug to blower motor.
3. Position harness and secure clip with screw.
4. Fit glove box, align hinges and tighten screws.
5. Position toe board and secure with studs.
