Discovery II
HEATING AND VENTILATION
80-20
REPAIRS
Servo - air temperature control
$% 80.10.42
Remove
1. Disconnect battery earth lead.
2. Driver side: Remove heater assembly.
REPAIRS, Heater assembly - models with
air conditioning.
3. Passenger side: Remove blower assembly.

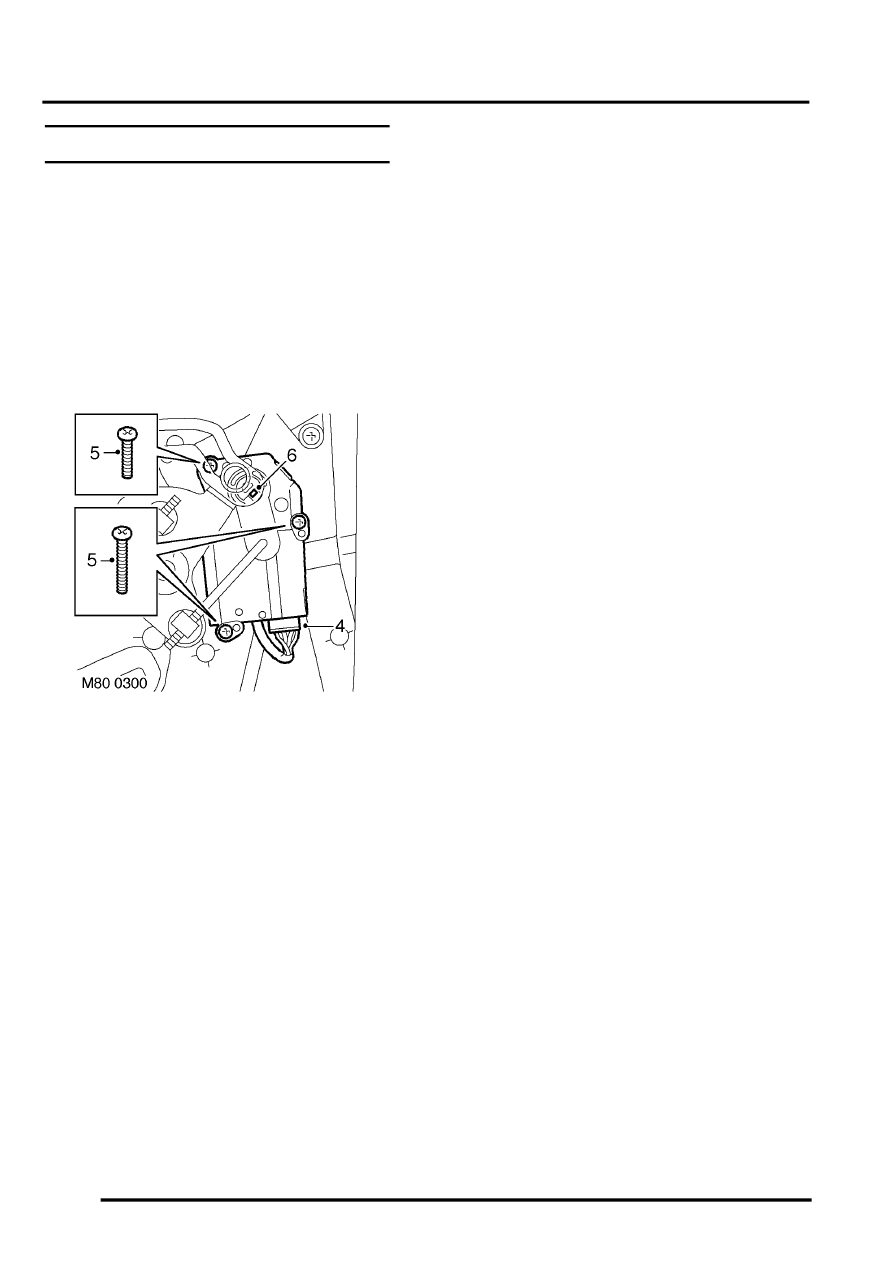

4. Disconnect multiplug from servo.
5. Remove 3 screws securing servo to casing and
release servo.
6. Release clip securing operating lever, release
the lever and remove servo. lever.
Refit
1. Connect operating lever to servo and secure
with clip.
2. Position servo to casing, engage locating pegs
and secure with screws.
3. Connect multiplug to servo.
4. Driver side: Fit heater assembly.
REPAIRS, Heater assembly - models with
air conditioning.
5. Passenger side: Fit blower assembly.
6. Connect battery earth lead.
