Discovery II
HEATING AND VENTILATION
REPAIRS
80-17
Servo - recirculation flap
$% 80.10.18

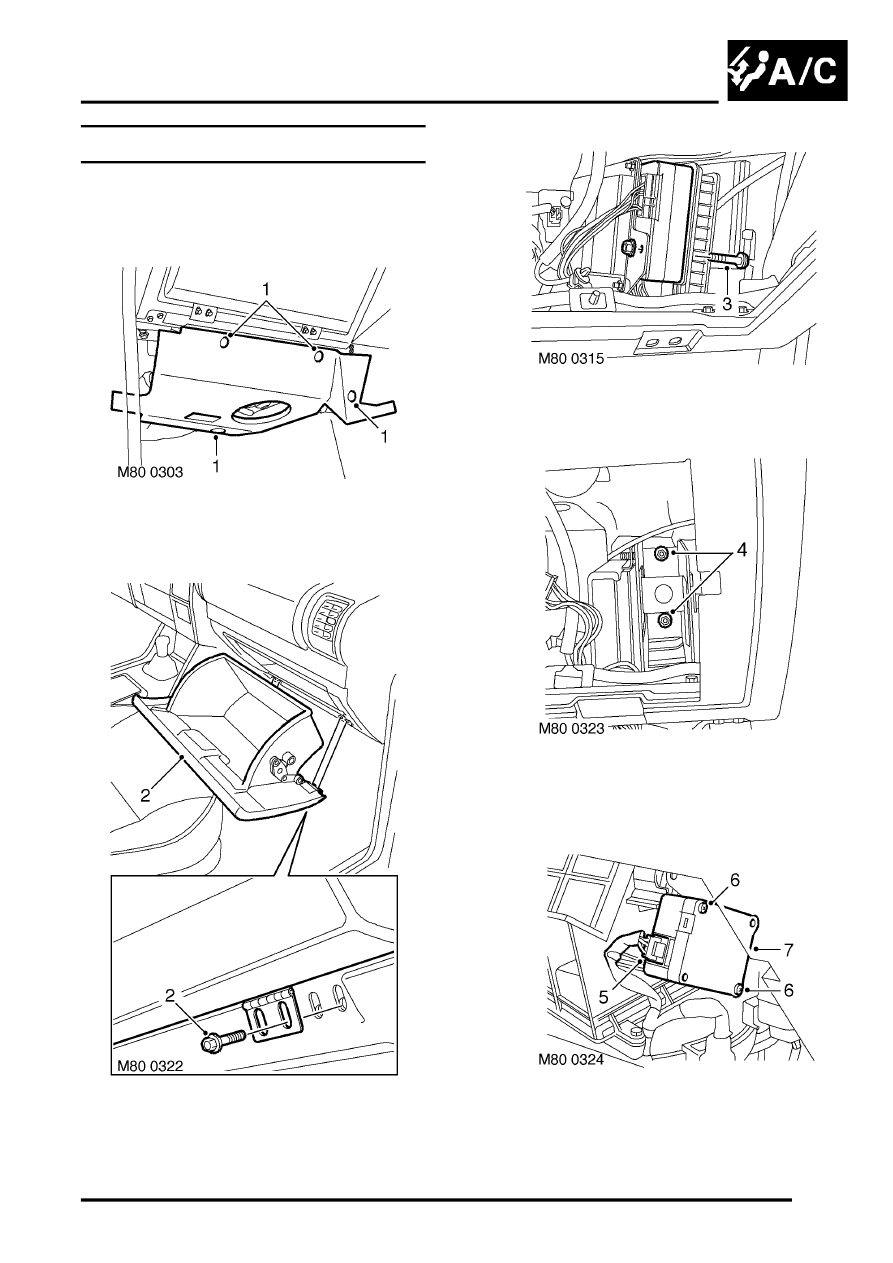

Remove
1. Remove 4 studs securing passenger toe board
and remove toe board.
2. Remove 4 screws securing glove box, release
catch and remove glove box.
3. Remove bolt securing BCM, release BCM from
retaining peg and lower BCM.
4. Remove 2 nuts securing ECU assembly and
lower ECU assembly to gain access to servo
screws.
5. Disconnect multiplug from servo.
6. Remove 2 screws securing servo.
7. Release servo, disconnect operating lever and
remove servo.
