L322 Range Rover Service Procedures
CHARGING AND STARTING
REPAIRS
86-1-5

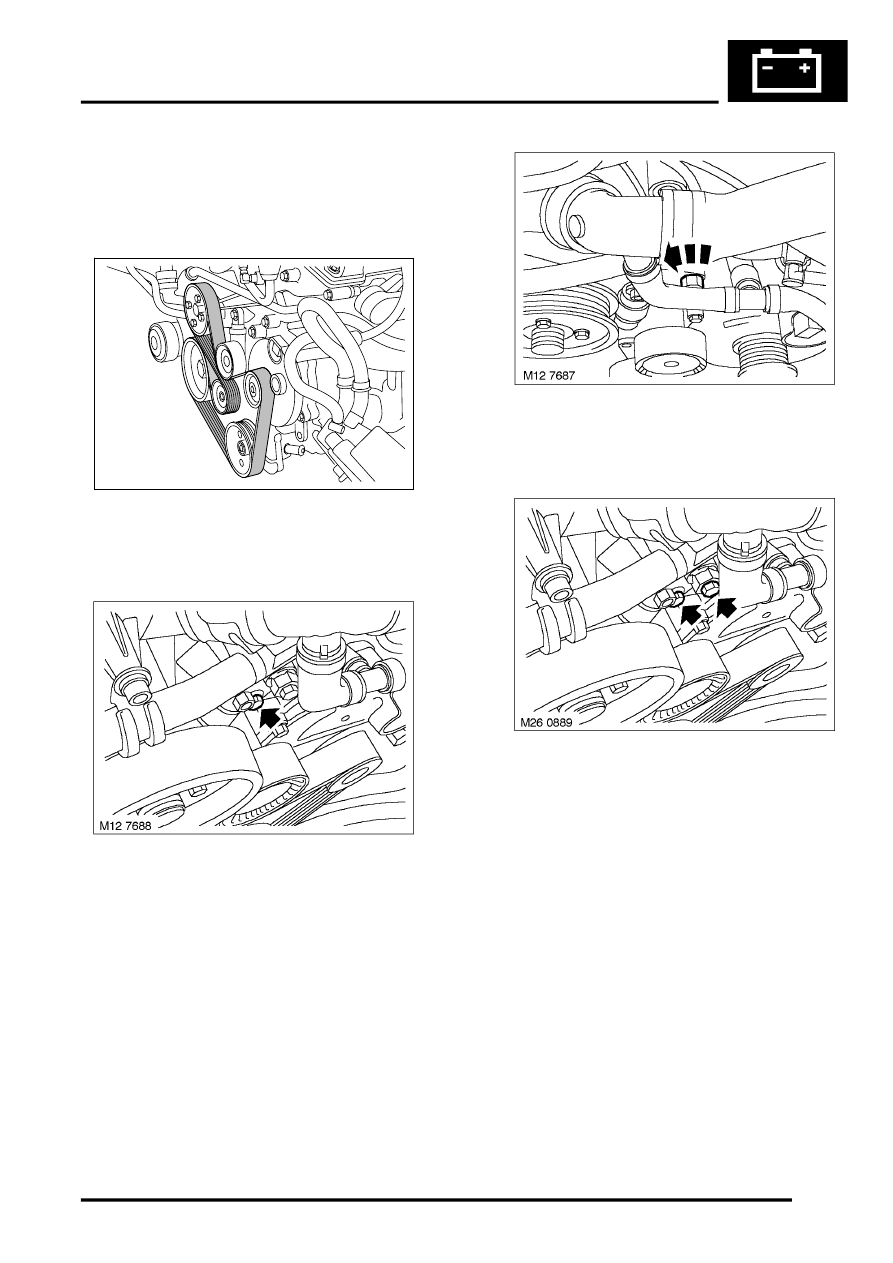

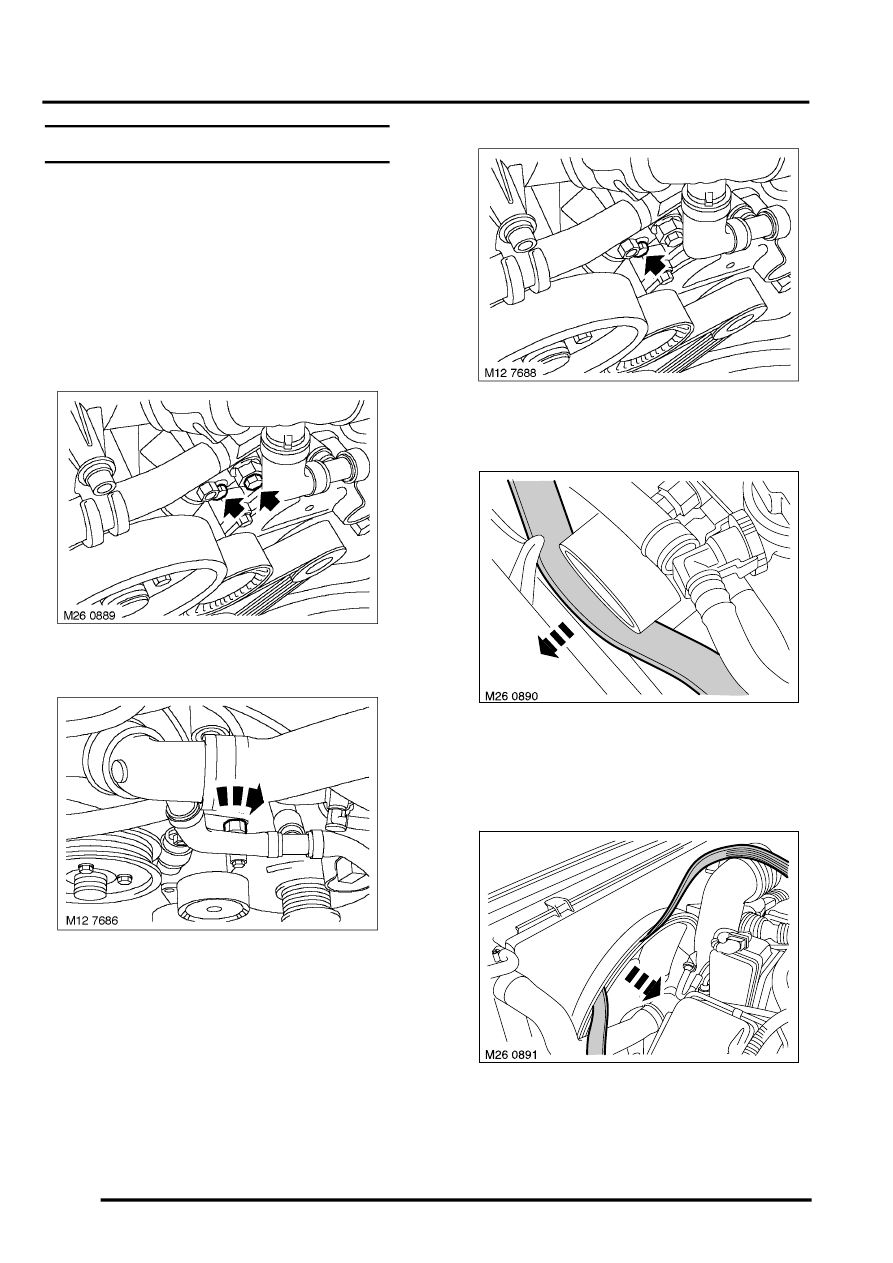

Refit
1. Check drive belt pulleys are damage free.
2. Fit ancillary drive belt over cooling fan
assembly.
3. Fit ancillary drive belt to all pulleys except
tensioner pulley.
4. Fit ancillary drive belt to tensioner pulley.
Ensure ancillary drive belt is aligned to all
pulleys.
5. Undo tensioner clamping bolt to release
tensioner
6. Using a 17 mm (11/16 in) spanner, rotate belt
tensioner fully anticlockwise to tension ancillary
drive belt.
7. Hold tensioner in the tensioned position and
tighten tensioner bolts to 30 Nm (22 lbf.ft).
8. Connect battery earth lead.
M01 0305
