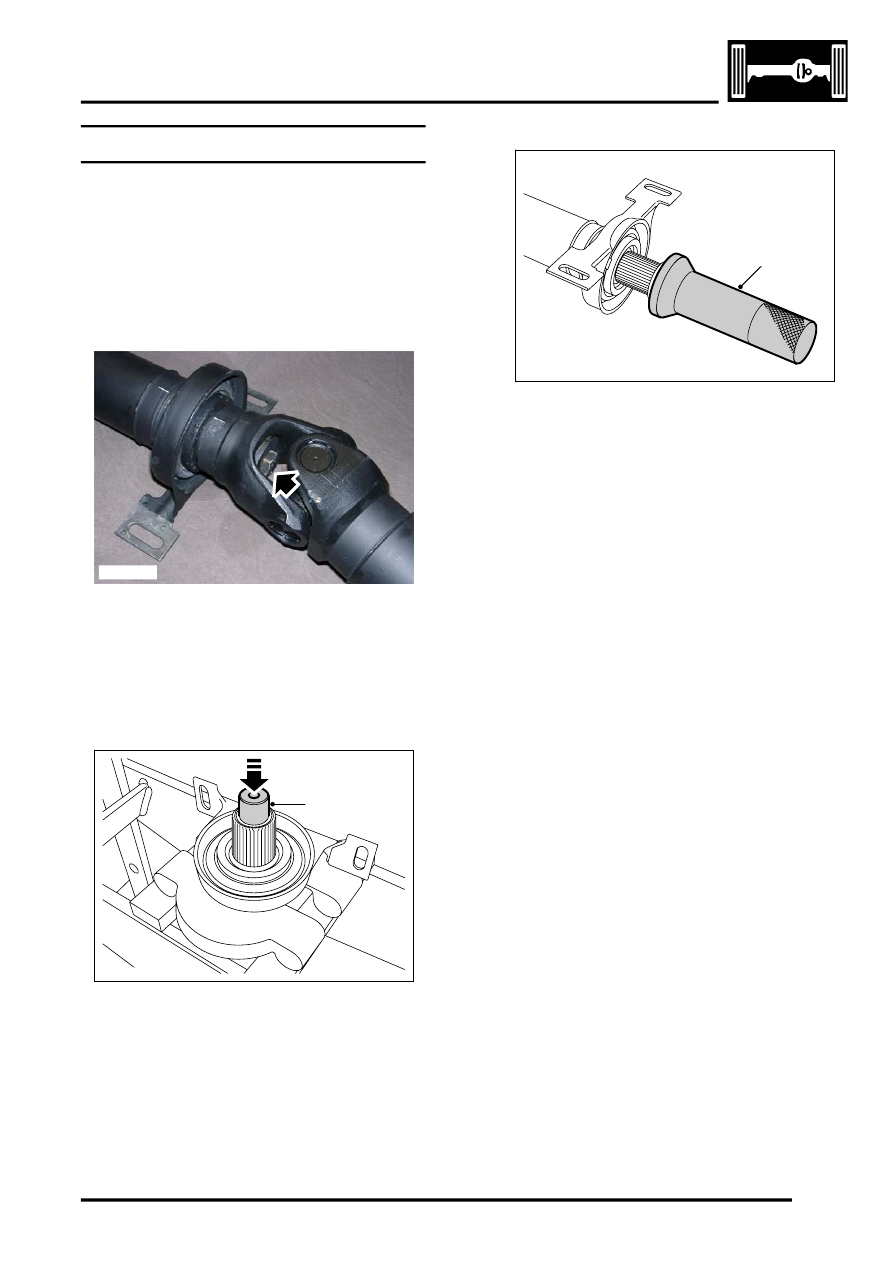

Support bearing - rear
$% 47.20.06
Remove
1. Position vehicle on lift.
2. Disconnect battery earth lead.
3. Remove rear propeller shaft.
DRIVESHAFTS, REPAIRS, Propeller
4. Reference mark rear propeller shaft for
reassembly.
5. Remove bolt securing front part to rear part of
propeller shaft.
6. Remove rear part of propeller shaft.
7. Remove shim from shaft.
8. Use press bars under support bearing as
illustrated.
9. Fit LRT-37-011/2 to end of shaft and press
propeller shaft from bearing.
Refit
1. Clean propeller shafts, bearing and mating
faces.
2. Use LRT-51-020 and fit support bearing to
propeller shaft.
3. Fit shim to shaft.
4. Align marks and engage splines of front and
rear part of propeller shaft.
5. Ensure threads are clean and dry, apply Loctite
STC 50552 to bolt thread, fit bolt securing
propeller shafts and tighten to 97 Nm (72 lbf.ft).
6. Fit rear propeller shaft.
DRIVESHAFTS, REPAIRS, Propeller
7. Lower lift.
8. Connect battery earth lead.
M47 0408
M47 0409
LRT-37-011/2
M47 0410
LRT-51-020
