L322 Range Rover Service Procedures
DRIVESHAFTS
REPAIRS
47-17
Gaiter - bell & joint - outer - rear
$% 47.11.03
Remove
1. Remove drive shaft.
2. Place drive shaft in vice.

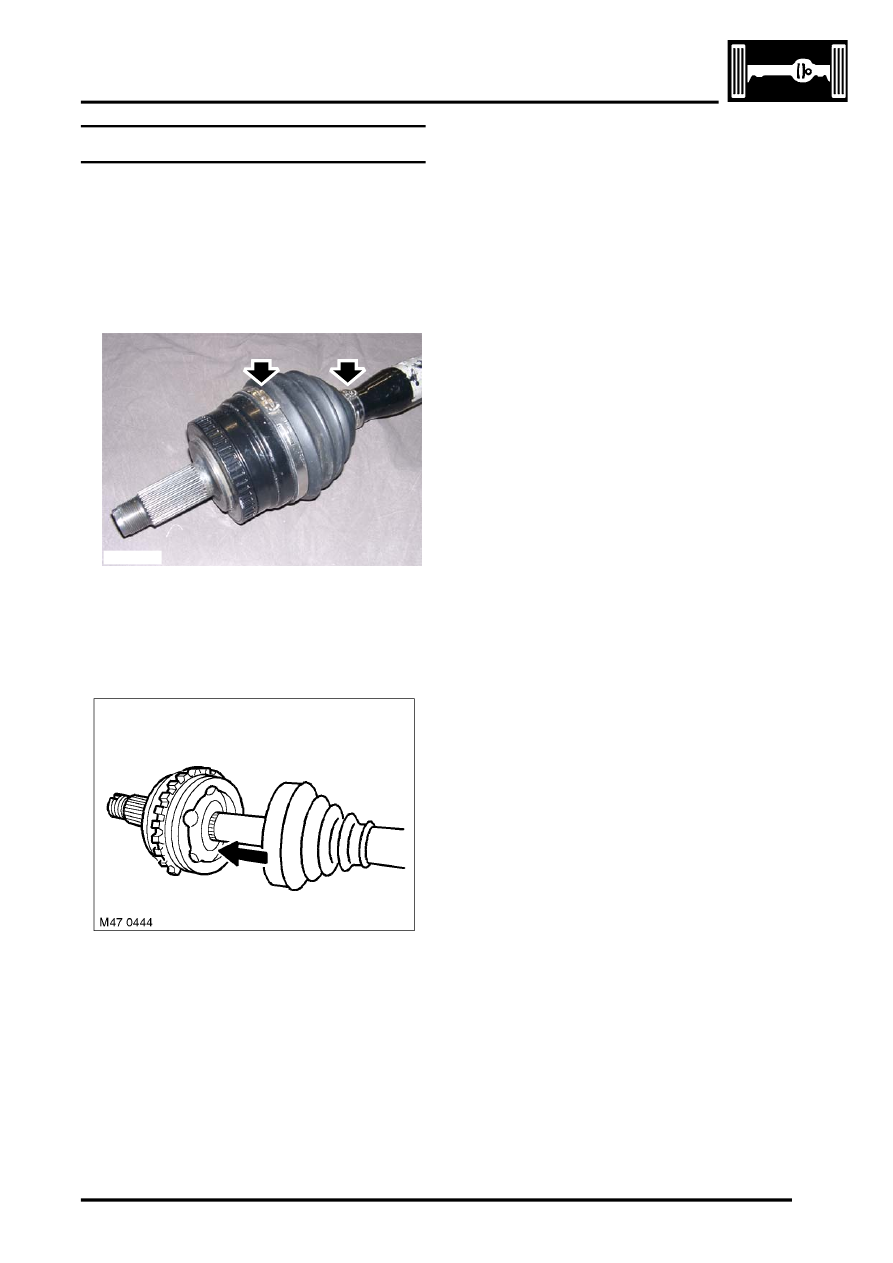

3. Release and discard both drive shaft gaiter
clips.
4. Slide gaiter along shaft to gain access to outer
joint.
5. Using a drift against the inner part of the joint,
remove joint from shaft.
6. Remove circlip from shaft and discard.
7. Remove gaiter from shaft.
Refit
1. Clean drive shaft.
2. Fit gaiter.
3. Fit new circlip to drive shaft.
4. Position outer joint to shaft, use a screwdriver
to press circlip into its groove and push joint
fully onto shaft.
5. Apply grease from the sachet to the joint.
6. Position gaiter to joint and secure to joint and
shaft with new clips.
7. Fit drive shaft.
M47 0422
