DRIVESHAFTS

47-20

REPAIRS

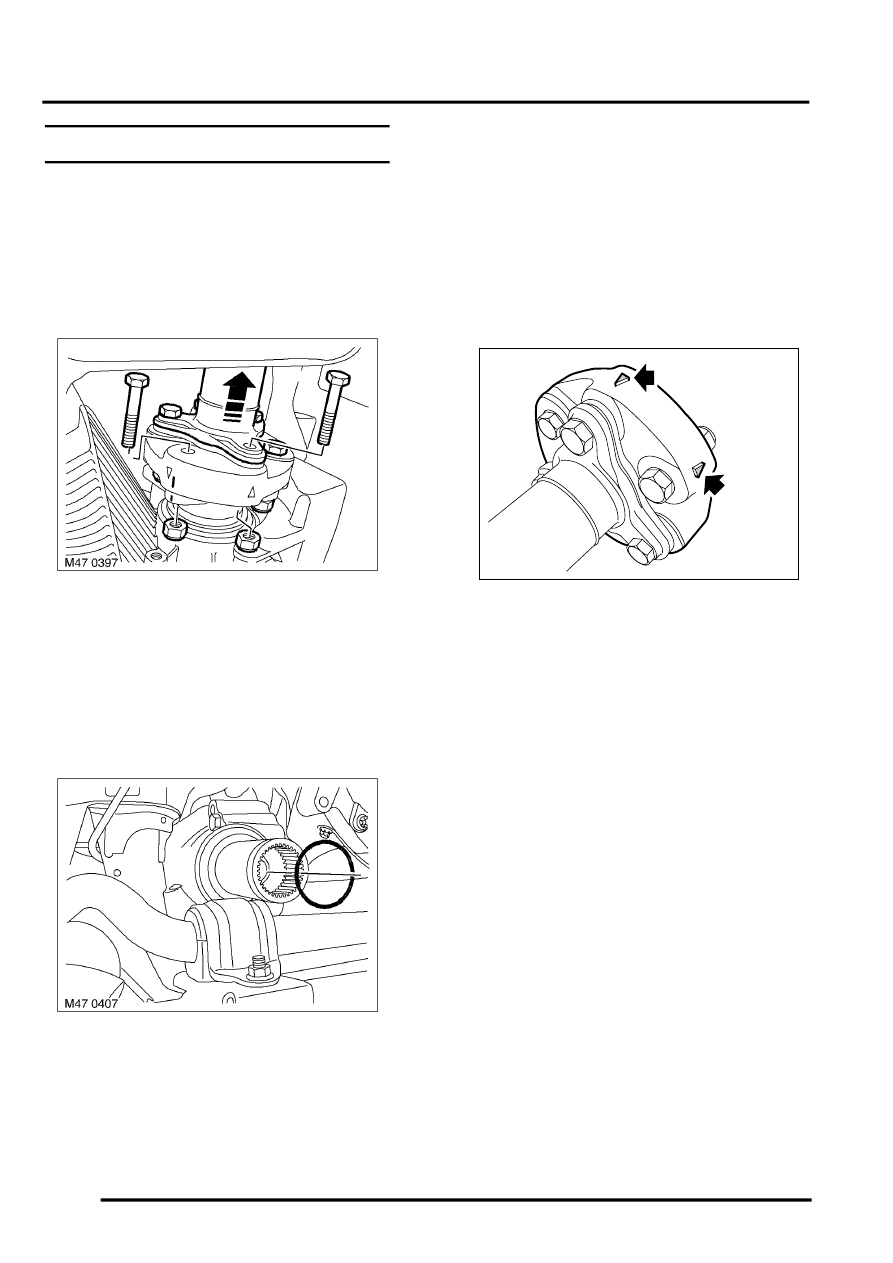

Propeller shaft - front

$% 47.15.02

Remove

1. Position vehicle on lift.
2. Disconnect battery earth lead.
3. Raise vehicle on lift.
4. Raise vehicle to allow propeller shaft to rotate.

5. Remove 6 nuts and bolts securing drive flange

and propeller shaft to coupling. Discard locking
nuts.

6. Pull propeller shaft rearwards and remove

coupling and centering flange.

7. Reference mark propeller shaft and differential

to aid reassembly.

8. Remove propeller shaft.

9. Remove and discard 'O' ring from differential

output drive tube.

Refit

1. Clean propeller shaft splines.
2. Fit new 'O' ring.
3. Lightly lubricate splines and oil seal running

surface.


 +

 CAPACITIES, FLUIDS,

LUBRICANTS AND SEALANTS,
Lubrication.

4. Fit propeller shaft.
5. Check and if necessary, renew centering flange

seal.

6. Clean coupling and flange mating faces.
7. Fit coupling and flange with arrows on coupling

pointing towards securing bolts as illustrated.

8. Fit bolts securing coupling and tighten new nuts

to 110 Nm (81 lbf.ft).

9. Lower vehicle onto it's wheels.

10. Lower lift.
11. Connect battery earth lead.

M47 0398
