L322 Range Rover Service Procedures
ENGINE - V8
12-2-94 OVERHAUL

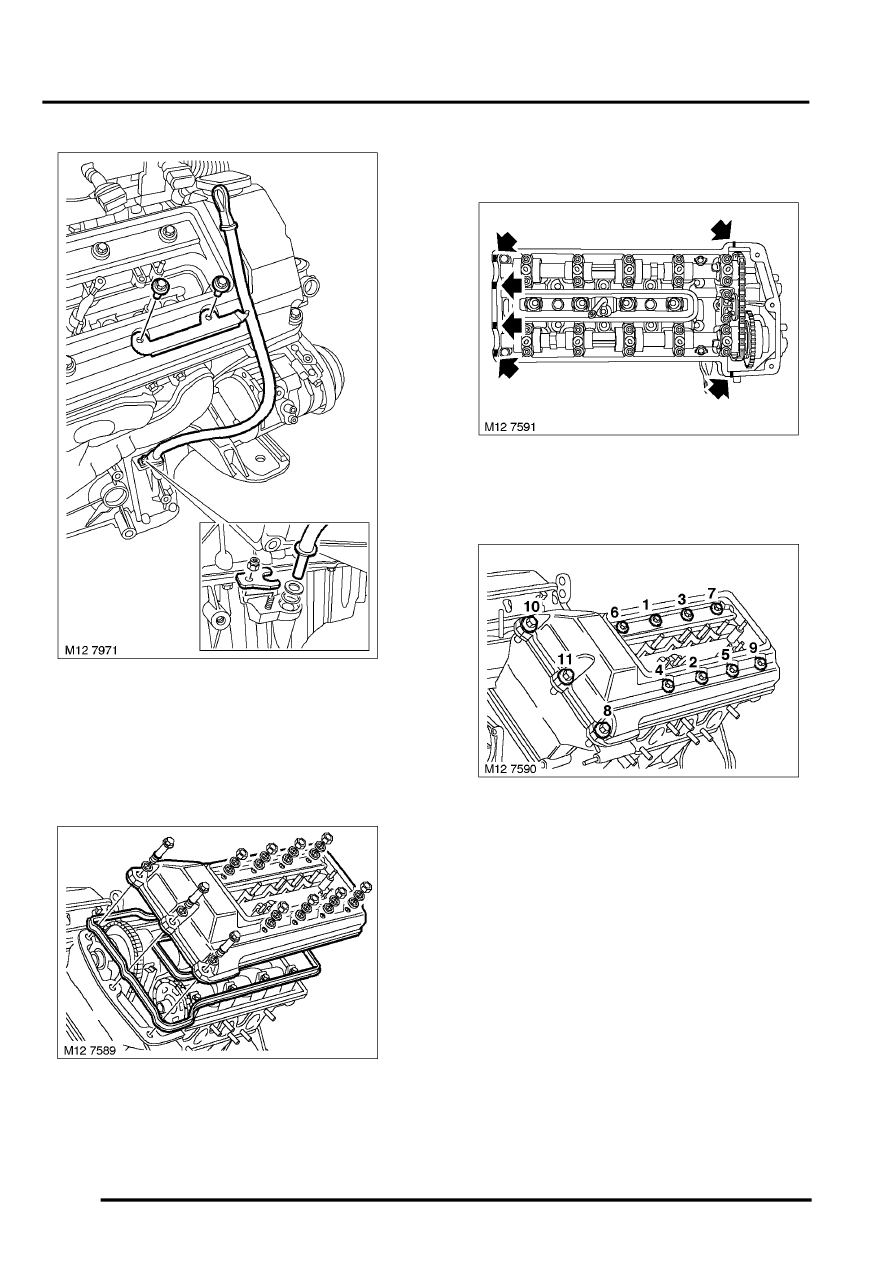

3. RH camshaft cover: Remove 2 nuts securing
dipstick tube.
4. RH camshaft cover: Remove nut and clamp
securing dipstick tube to oil sump.
5. RH camshaft cover: Remove dipstick tube
and sealing washer, discard 'O' ring.
6. Remove 8 nuts and 3 bolts securing camshaft
cover to cylinder head. Remove camshaft
cover, discard 2 gaskets and 11 sealing
washers.
Reassembly
1. Clean camshaft cover and mating face of
cylinder head.
2. Apply sealant STC 50550 to areas illustrated.
3. Fit 2 new gaskets and 11 new sealing washers
to camshaft cover and fit to cylinder head.
4. Fit 8 nuts and 3 bolts securing camshaft cover
and progressively tighten in sequence shown to
10 Nm (7 lbf.ft).
5. Fit 4 ignition coils.
6. Fit 7 nuts securing ignition coils to camshaft
cover and tighten to 4 Nm (3 lbf.ft).
7. RH camshaft cover: Clean dipstick tube and
mating face.
8. RH camshaft cover: Fit new 'O' ring and
sealing washer to oil sump and position dipstick
tube to oil sump.
9. RH camshaft cover: Fit and tighten nuts
securing dipstick tube to 10 Nm (7 lbf.ft).
10. RH camshaft cover: Fit clamp securing
dipstick tube to oil sump and tighten nut to 10
Nm (7 lbf.ft).
11. Connect breather hose to camshaft cover and
secure with clip.
