LIGHTING

86-2-4

REPAIRS

Bulb - headlamp

$% 86.40.09

WARNING:For vehicles fitted with  Xenon
headlamps, the following precautions must be
observed. Failure to comply may result in
exposure to ultra violet rays, severe electric
shock, burns or risk of explosion.

l

Ensure headlamps are switched off at all
times

l

Eye and hand protection must be worn

l

Never switch on lamps or test bulbs with the
lamp holder detached from headlamp

Before disconnecting the battery, ensure all text and
cautions in the battery disconnection section are
observed.


 +

 GENERAL INFORMATION, Electrical

Precautions.

Remove

1. Open bonnet for access.
2. Disconnect battery earth lead.
3. RH Headlamp on V8 models:Remove air

cleaner assembly.


 +

 ENGINE MANAGEMENT SYSTEM -

V8, REPAIRS, Housing - air cleaner.

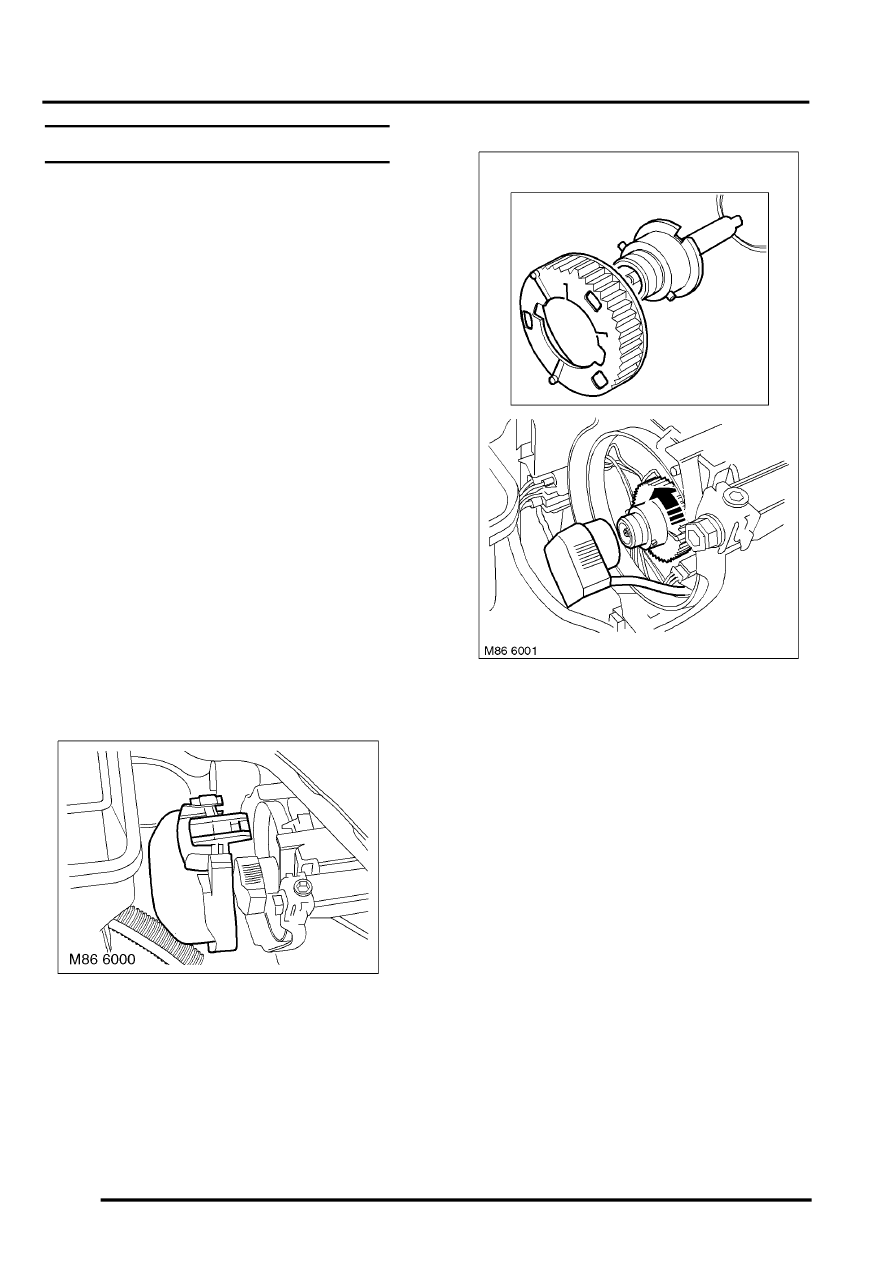

4. Remove headlamp bulb dust cover.

NOTE: Xenon headlamp illustrated.

5. Disconnect the headlamp bulb bayonet

connection.


 +

 GENERAL INFORMATION, Electrical

Precautions.

NOTE: Xenon headlamp illustrated.

6. Remove collar securing bulb to lampholder,

release and remove bulb.

Refit

1. Position the bulb to the lampholder, fit and

secure the collar.

2. Connect headlamp bulb bayonet connection.
3. Fit and secure headlamp bulb dust cover.
4. RH Headlamp on V8 models:Fit air cleaner

assembly.


 +

 ENGINE MANAGEMENT SYSTEM -

V8, REPAIRS, Housing - air cleaner.

5. Connect the battery earth lead.
6. Close bonnet.
