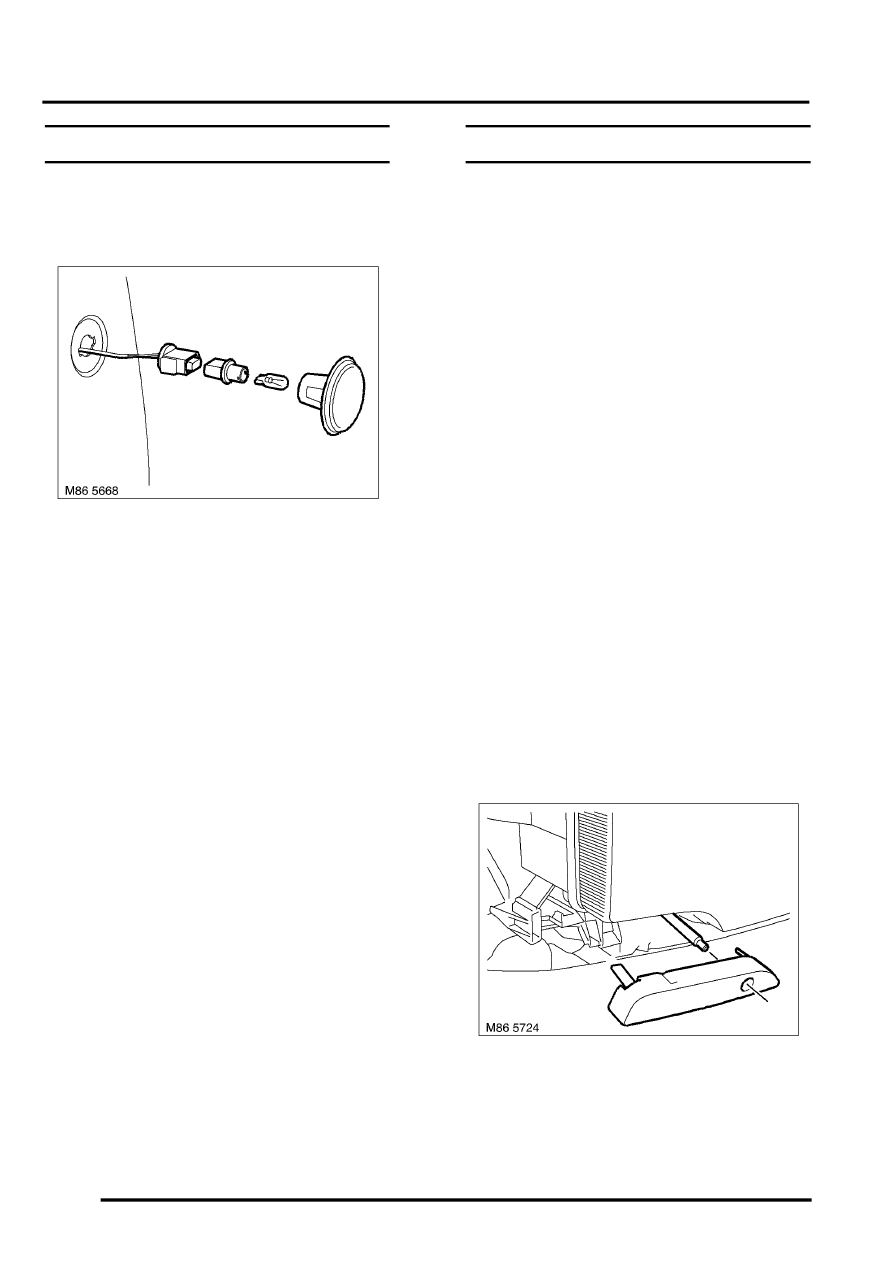

Lamp assembly - indicator side repeater
$% 86.40.53
Remove
1. Push side repeater lamp towards front of
vehicle. Release clip and ease lamp from wing.
2. Disconnect multiplug.
NOTE: Do not carry out further dismantling if
component is removed for access only.
3. Release bulb holder from lamp.
4. Release bulb from holder.
Refit
1. Fit bulb and secure bulb holder to lamp.
2. Connect multiplug.
3. Fit and secure lamp assembly.
Headlamp assembly
$% 86.40.55
WARNING:For vehicles fitted with Xenon
headlamps, the following precautions must be
observed. Failure to comply may result in
exposure to ultra violet rays, severe electric
shock, burns or risk of explosion.
l
Ensure headlamps are switched off at all
times
l
Eye and hand protection must be worn
l
Never switch on lamps or test bulbs with the
lamp holder detached from headlamp
Remove
1. RH Headlamp on V8 models:Remove air
V8, REPAIRS, Housing - air cleaner.
2. Remove side and indicator lamp
3. Protect bumper from damage.
CAUTION: Always protect paintwork when
removing or refitting any body trims or
bumpers.
4. Remove headlight wiper arm.
5. Remove headlight wiper spindle escutcheon.
6. Remove front grille.
