L322 Range Rover Service Procedures
LIGHTING
REPAIRS
86-2-5
Lamp assembly - side & indicator
$% 86.40.29
Before disconnecting the battery, ensure all text and
cautions in the battery disconnection section are
observed.
GENERAL INFORMATION, Electrical

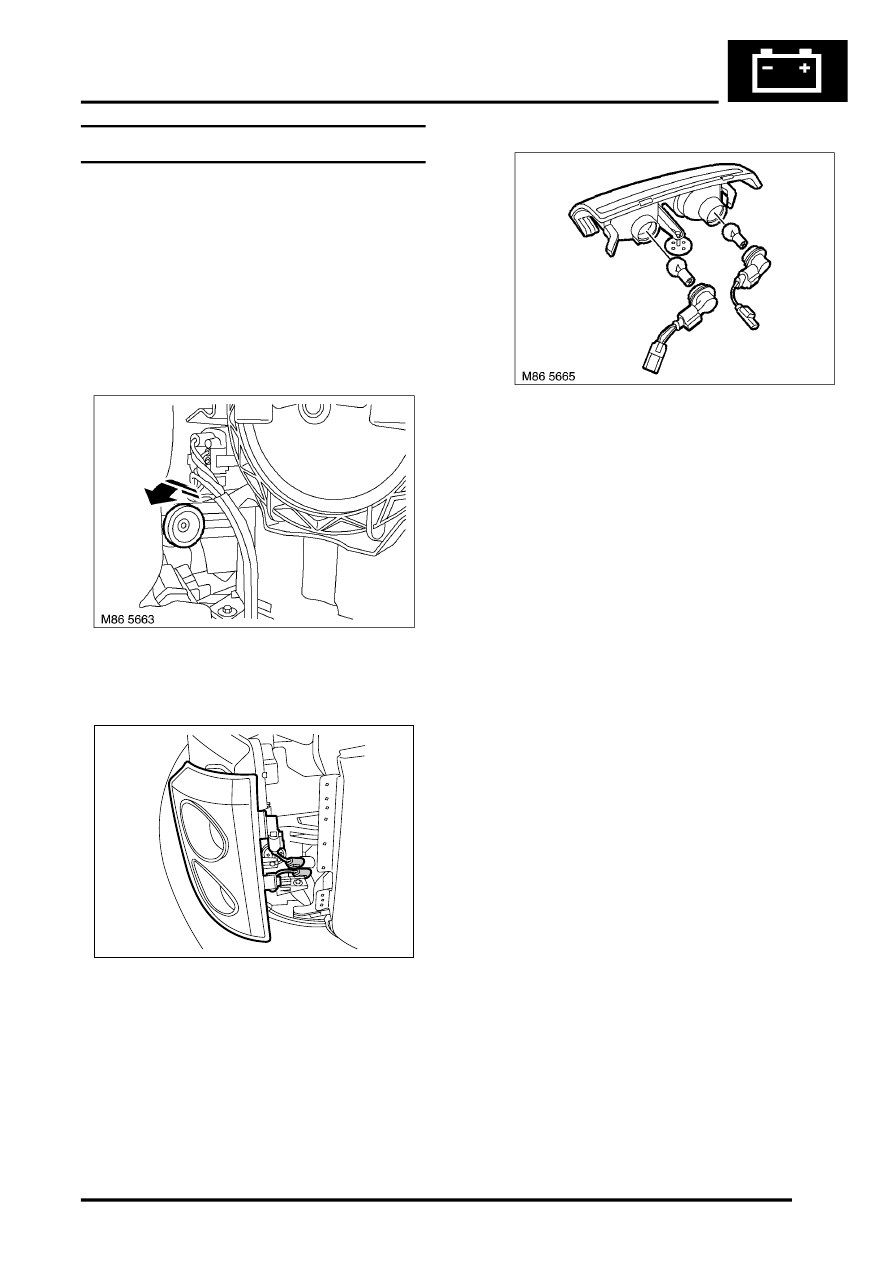

Remove
1. Disconnect battery earth lead.
2. Remove thumbscrew nut securing lamp
assembly to headlamp mounting bracket.
3. Slide lamp assembly forward, disconnect
multiplugs and remove lamp assembly.
NOTE: Do not carry out further dismantling if
component is removed for access only.
4. Remove bulb holders from lamp assembly,
remove bulbs from holders.
Refit
1. Fit bulbs to holders.
2. Fit bulb holders to lamp assembly.
3. Connect multiplugs.
4. Fit and secure lamp assembly.
5. Connect battery earth lead.
M86 5664
