LIGHTING

REPAIRS

86-2-9

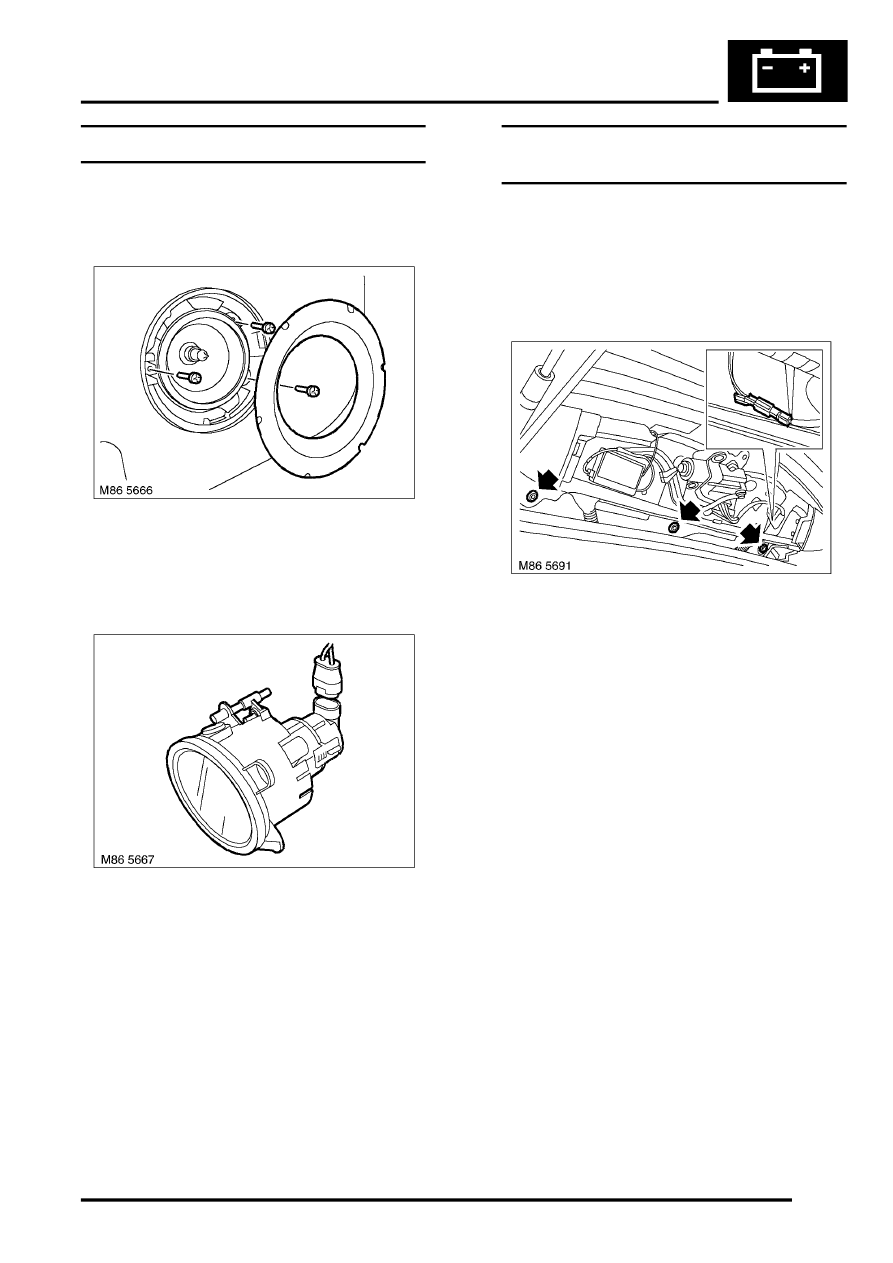

Lamp - driving

$% 86.40.96

Remove

1. Release clips securing driving lamp finisher to

bumper, collect the finisher.

2. Remove 3 screws securing lamp assembly to

bumper.

3. Release lamp assembly from bumper and

disconnect multiplug.

NOTE: Do not carry out further dismantling if
component is removed for access only.

4. Remove bulb holder from lamp.
5. Remove bulb from bulb holder.

Refit

1. Fit bulb and secure bulb holder to lamp.
2. Connect multiplug.
3. Fit new lamp to bumper and secure with

screws.

4. Fit and secure finisher to bumper.

Lamp assembly - stop - centre high
mounted

$% 86.41.32

Remove

1. Remove upper tailgate finisher.

 +

 DOORS, REPAIRS, Trim finisher -

tailgate - upper.

2. Remove 3 bolts securing spoiler to tailgate.
3. Disconnect multiplug from harness.
4. Close upper tailgate.
5. Slide spoiler rearward and release from clips.

Release Central High Mounted Stop Lamp
(CHMSL) harness from tailgate and remove
spoiler.

NOTE: Do not carry out further dismantling if
component is removed for access only.

6. Remove 4 screws securing CHMSL to spoiler,

release harness from spoiler and remove lamp.

Refit

1. Position CHMSL and harness to spoiler, secure

with screws.

2. Fit and secure  spoiler to tailgate, tighten bolts

to 10 Nm (7 lbf.ft).

3. Open upper tailgate.
4. Connect multiplug.
5. Fit upper tailgate finisher.

 +

 DOORS, REPAIRS, Trim finisher -

tailgate - upper.
