Range Rover P38
MANIFOLD AND EXHAUST SYSTEM
11
REPAIR
Refit
17. Ensure all mating faces are clean.
18. Using assistance, position front pipe and NEW
gaskets to manifold.
19. Fit but do not tighten nuts securing front pipe to
manifolds.
20. Align front pipe to intermediate pipe, fit nuts and
tighten to
25 Nm (18 lbf.ft)
21. Tighten front pipe to manifold nuts to
50 Nm
(37 lbf.ft)
22. Connect heated oxygen sensor multiplugs to
brackets.
23. Connect oxygen sensor multiplugs.
24. Connect oxygen sensor fly leads to clips.
25. Using assistance, fit crossmember to chassis.
26. Fit nuts and bolts and tighten to
45 Nm
(33 lbf.ft)
27. Fit transmission snubber bar.
28. Fit bolts and NEW flange nuts securing
transmission mount to crossmember and tighten
to
45 Nm (33 lbf.ft)
29. Remove transmission stand.
30. Align rear of side acoustic covers to
crossmember and secure with threaded
fasteners.
EXHAUST FRONT PIPE - V8 - FROM 99MY
Service repair no - 30.10.09
Remove
1. Release fixings and remove battery cover.
2. Disconnect battery earth lead.
3. Remove chassis crossmember.
See CHASSIS
AND BODY, Repair.

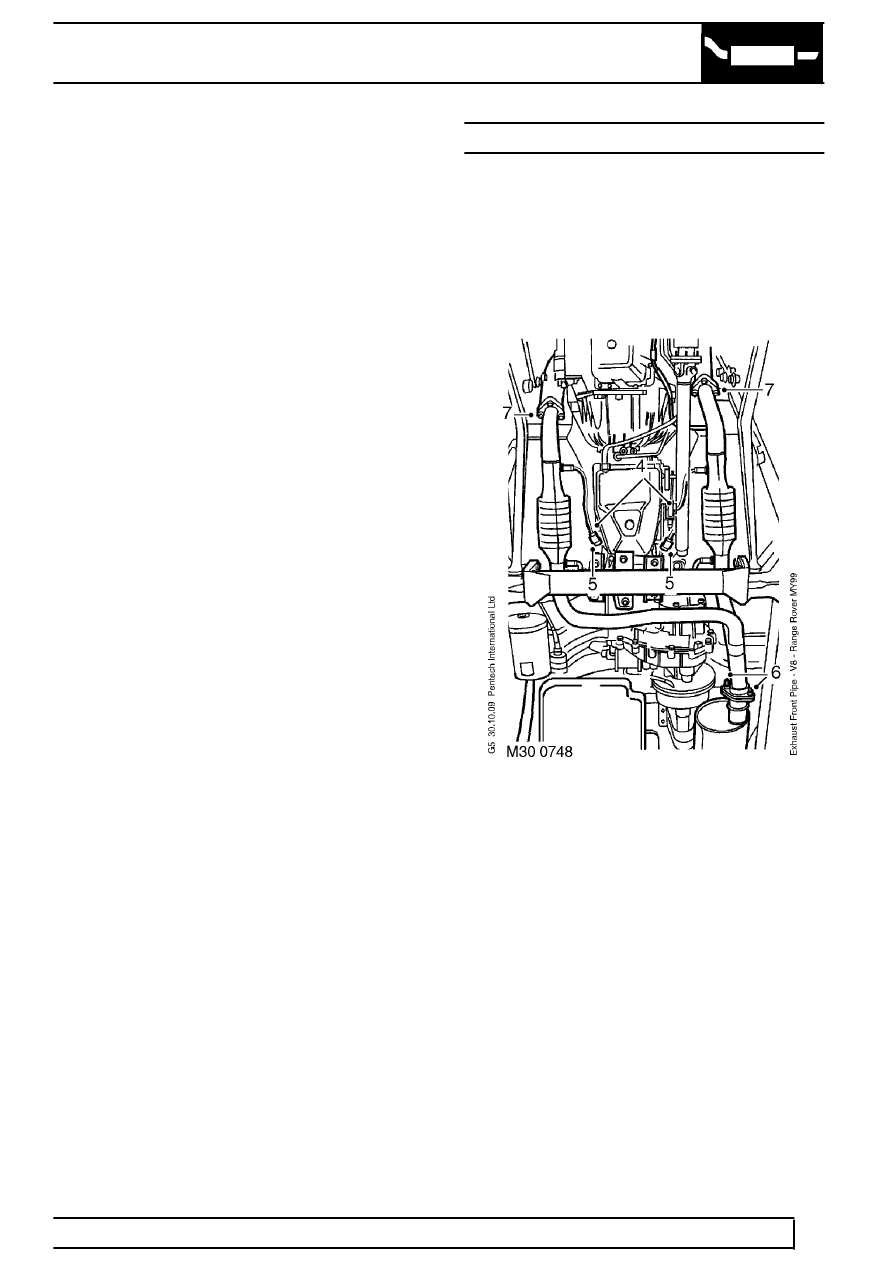

4. Disconnect 2 front HO2S multiplugs and release
RH HO2S harness from clip on sump.
5. Release 2 rear HO2S multiplugs from brackets,
disconnect from harness and release harness
from 2 clips.
6. Remove 2 nuts securing exhaust front pipe to
intermediate flange.
7. Remove 6 nuts securing front exhaust pipe to
exhaust manifold down pipe flanges.
