Range Rover P38 Intermediate and Rear Pipes Repair
MANIFOLD AND EXHAUST SYSTEM
27
REPAIR
INTERMEDIATE AND REAR PIPES
Service repair no - 30.10.11 - Intermediate Pipe
Service repair no - 30.10.22 - Rear Pipe
Remove
1. Raise vehicle on four post lift.

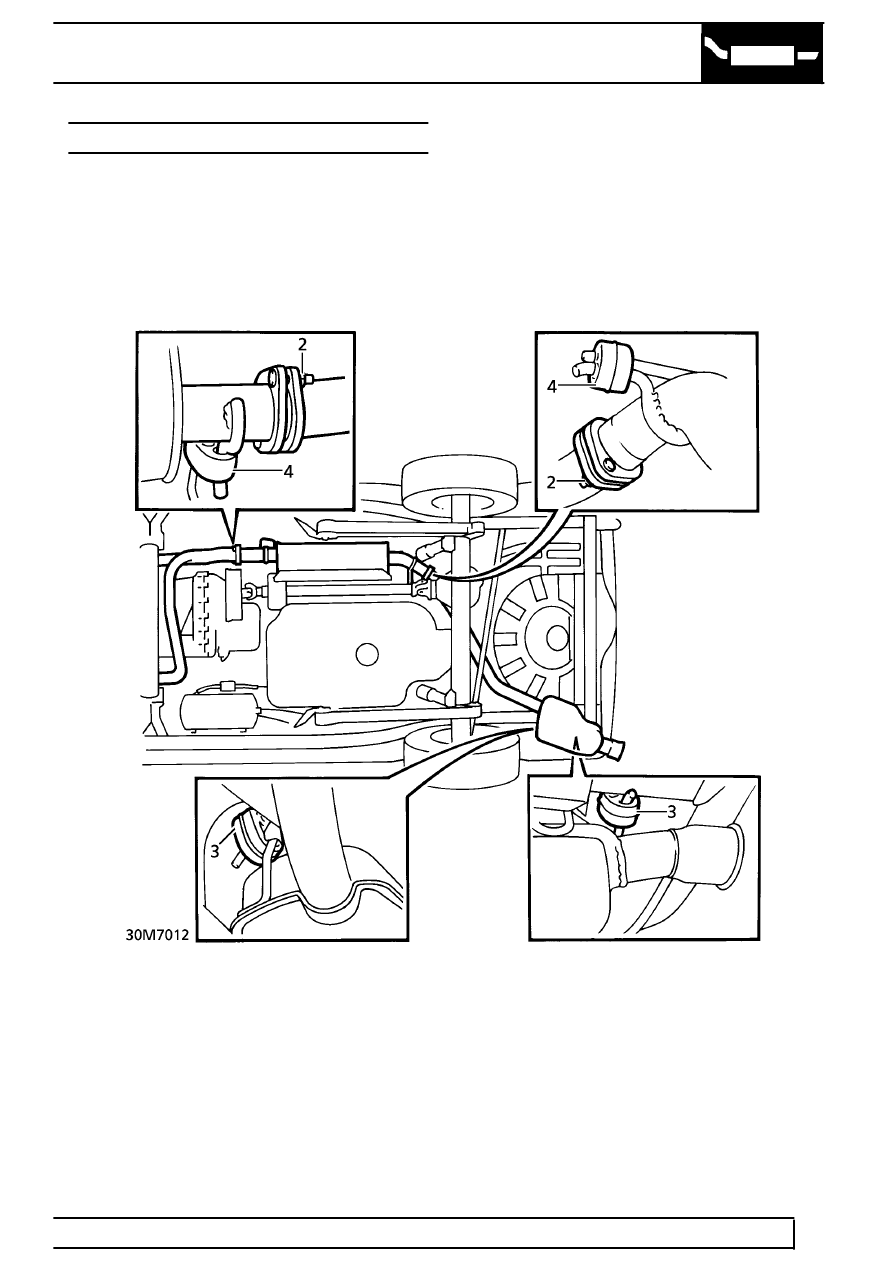

2. Remove 4 nuts securing intermediate pipe
flanges to front and rear pipes.
3. Release 2 mounting rubbers. Remove rear pipe.
4. With assistance, release 2 mounting rubbers.
Remove intermediate pipe.
Refit
5. Ensure mating faces are clean.
6. With assistance, position intermediate pipe.
Secure with mounting rubbers.
7. Position rear pipe. Secure with mounting
rubbers.
8. Position intermediate pipe flanges. Secure with
nuts. Tighten to
25 Nm (18 lbf.ft).
