Range Rover P38
30
MANIFOLD AND EXHAUST SYSTEM
NEW RANGE ROVER
6
REPAIR
20. Fit outer heat shield. Secure with bolts. Tighten
to
8 Nm (6 lbf.ft).
21. Fit MAF sensor and hose assembly to throttle
body. Secure with clip.
22. Fit ’O’ ring to MAF sensor. Secure MAF sensor
to air cleaner with clips.
23. Connect multiplug to MAF sensor. Engage
harness in clip on air intake hose.
24. RH Manifold Only. Tighten RH shock absorber
top mounting bolt to
85 Nm (63 lbf.ft).
25. Route H.T. leads. Secure in clips. Connect plug
caps.
26. RHD, RH Manifold Only. Fit steering column
intermediate shaft.
See STEERING, Repair.
27. Raise lift.
28. Fit new gasket to front pipe. Position pipe to
exhaust manifold. Secure with nuts. Tighten to
50 Nm (37 lbf.ft).
29. Reconnect battery negative lead.
30. Fit battery cover and secure with fixings.
EXHAUST MANIFOLD GASKETS - DIESEL
Service repair no - 30.15.12
Remove
1. Disconnect battery negative lead.
2. Raise the vehicle.
WARNING: Support on safety stands.
3. Remove heat shield.
See this section.

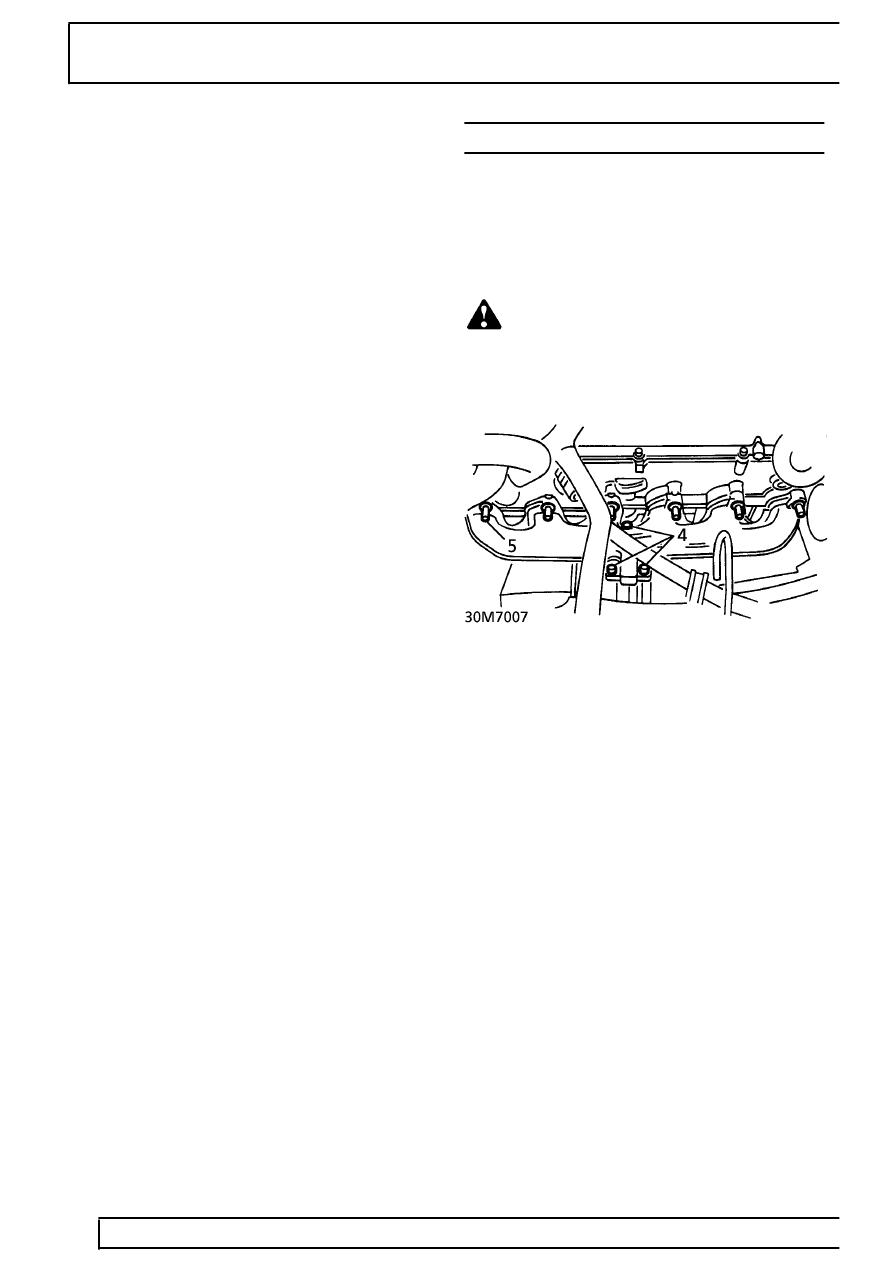

4. Remove 3 bolts securing turbocharger to
exhaust manifold. Collect gasket and discard.
5. Remove 12 nuts and flat washers securing
exhaust manifold to cylinder head.
Vehicles with
EGR: Remove 2 bolts securing EGR pipe flange
to manifold. Position pipe aside.
