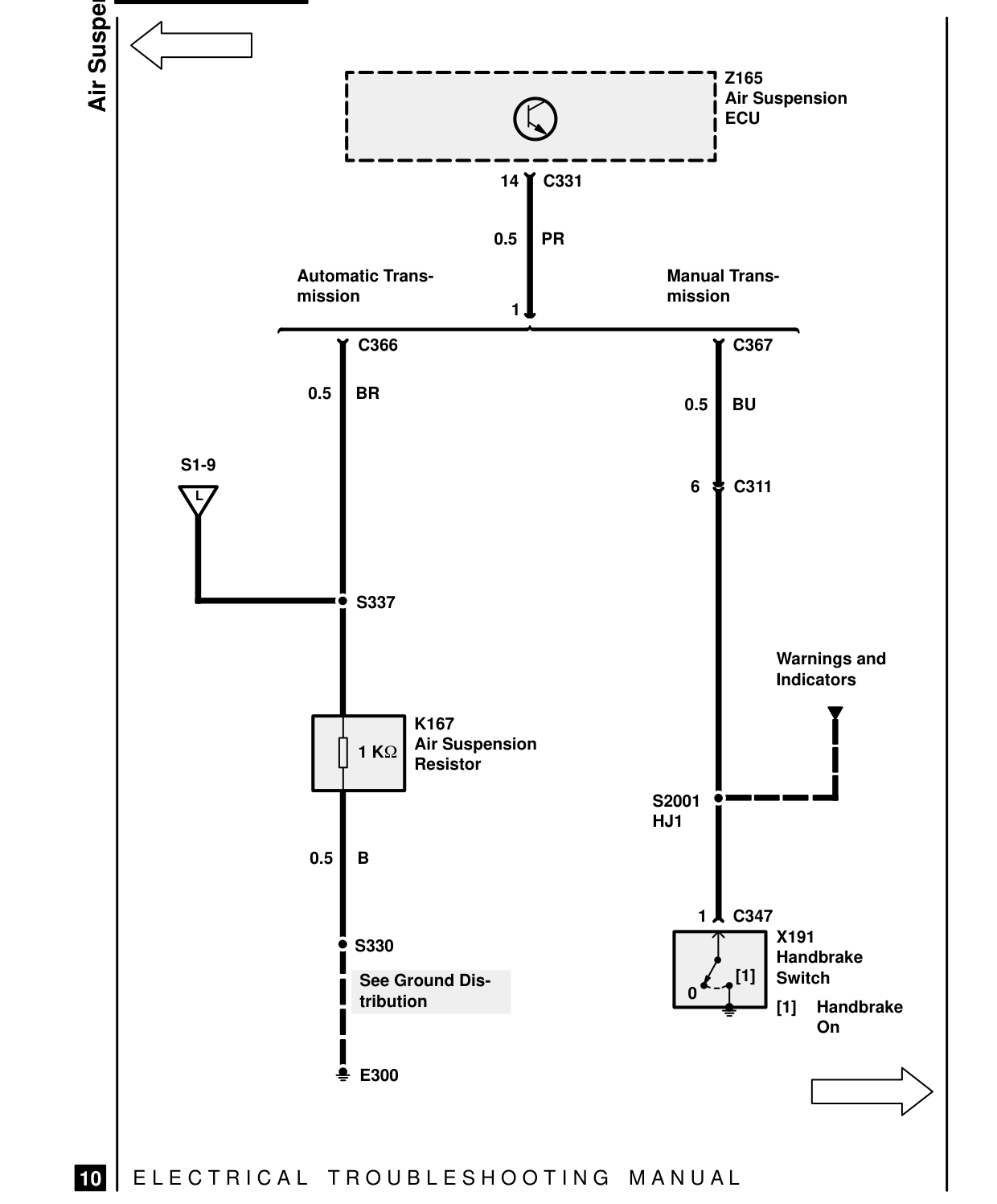

AIR SUSPENSION – CIRCUIT DIAGRAM

Air Suspension

Automatic Trans- mission

C366

0.5 BR

S1-9

L

S337

K167 Air Suspension

1 K

Resistor

0.5 B

S330

See Ground Dis- tribution

E300

E L E C T R I C A L T R O U B L E S H O O T I N G

10

Z165 Air Suspension ECU

14 C331

0.5 PR

Manual Trans- mission 1

C367

0.5 BU

6 C311

Warnings and Indicators

S2001 HJ1

1 C347 X191 Handbrake [1] Switch 0 [1] Handbrake On

M A N U A L

44 Steering & suspension
