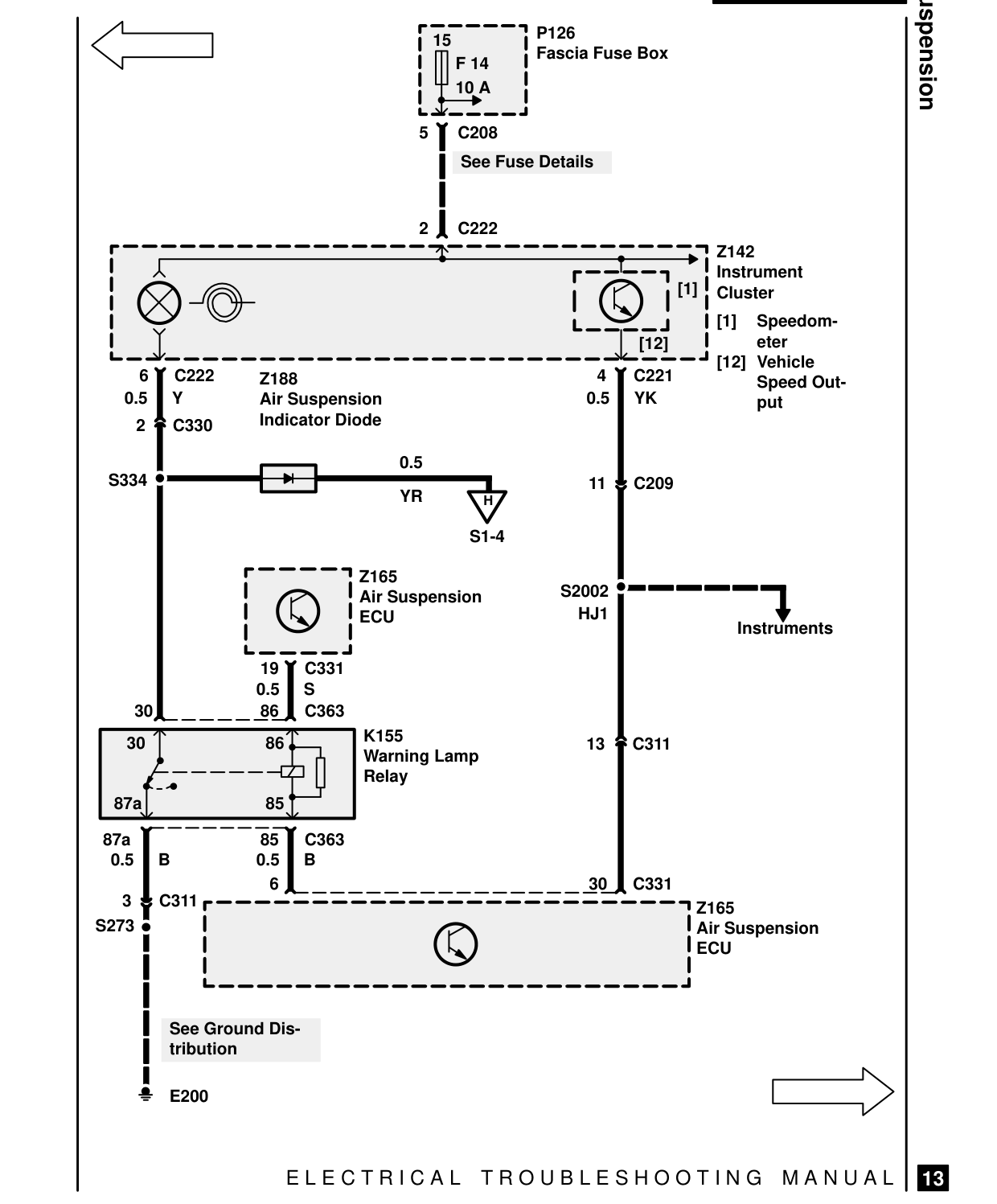

Air suspension – circuit diagram

AIR SUSPENSION – CIRCUIT DIAGRAM

15 F 14 10 A

5 C208 See Fuse Details

2 C222

6 C222 Z188 0.5 Y Air Suspension Indicator Diode 2 C330

0.5 S334 YR

S1-4

Z165 Air Suspension ECU

19 C331 0.5 S 86 30 C363 K155 86 30 Warning Lamp Relay 87a 85

85 87a C363 0.5 B 0.5 B 6 3 C311 S273

See Ground Dis- tribution

E200

E L E C T R I C A L

Air Suspension P126 Fascia Fuse Box

Z142 Instrument [1] Cluster [1] Speedom- eter [12] [12] Vehicle 4 C221 Speed Out- 0.5 YK put

11 C209 H

S2002 HJ1 Instruments

13 C311

30 C331 Z165 Air Suspension ECU

T R O U B L E S H O O T I N G M A N U A L

13
