Air suspension – circuit diagram

Make

Land Rover

Model

Range Rover Classic Electrical Troubleshooting Manual

Year

1995

Section

Circuit diagram › Air suspension – circuit diagram

Air suspensionAir suspension – circuit diagram

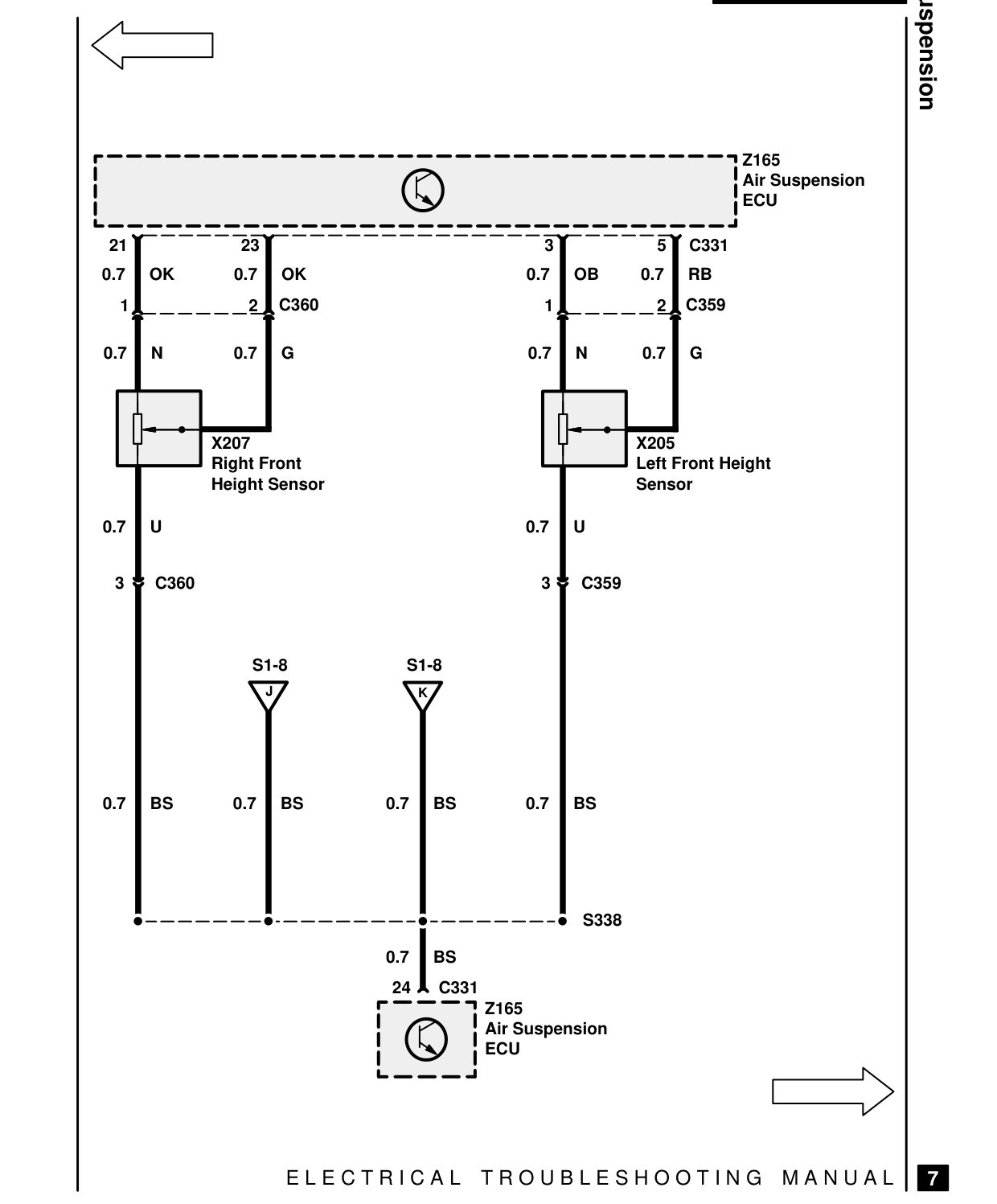

AIR SUSPENSION – CIRCUIT DIAGRAM

21 23 0.7 OK 0.7 OK C360 1 2

0.7 N 0.7 G

X207 Right Front Height Sensor

0.7 U

3 C360

S1-8 S1-8 J K

0.7 BS 0.7 BS 0.7 BS

0.7 BS 24 C331

E L E C T R I C A L

Air Suspension

Z165 Air Suspension ECU

3 5 C331 0.7 OB 0.7 RB C359 1 2

0.7 N 0.7 G

X205 Left Front Height Sensor

0.7 U

C359 3

0.7 BS

S338

Z165 Air Suspension ECU

T R O U B L E S H O O T I N G M A N U A L

7

44 Steering & suspension
