Air suspension – circuit diagram

Make

Land Rover

Model

Range Rover Classic Electrical Troubleshooting Manual

Year

1995

Section

Circuit diagram › Air suspension – circuit diagram

Air suspensionAir suspension – circuit diagram

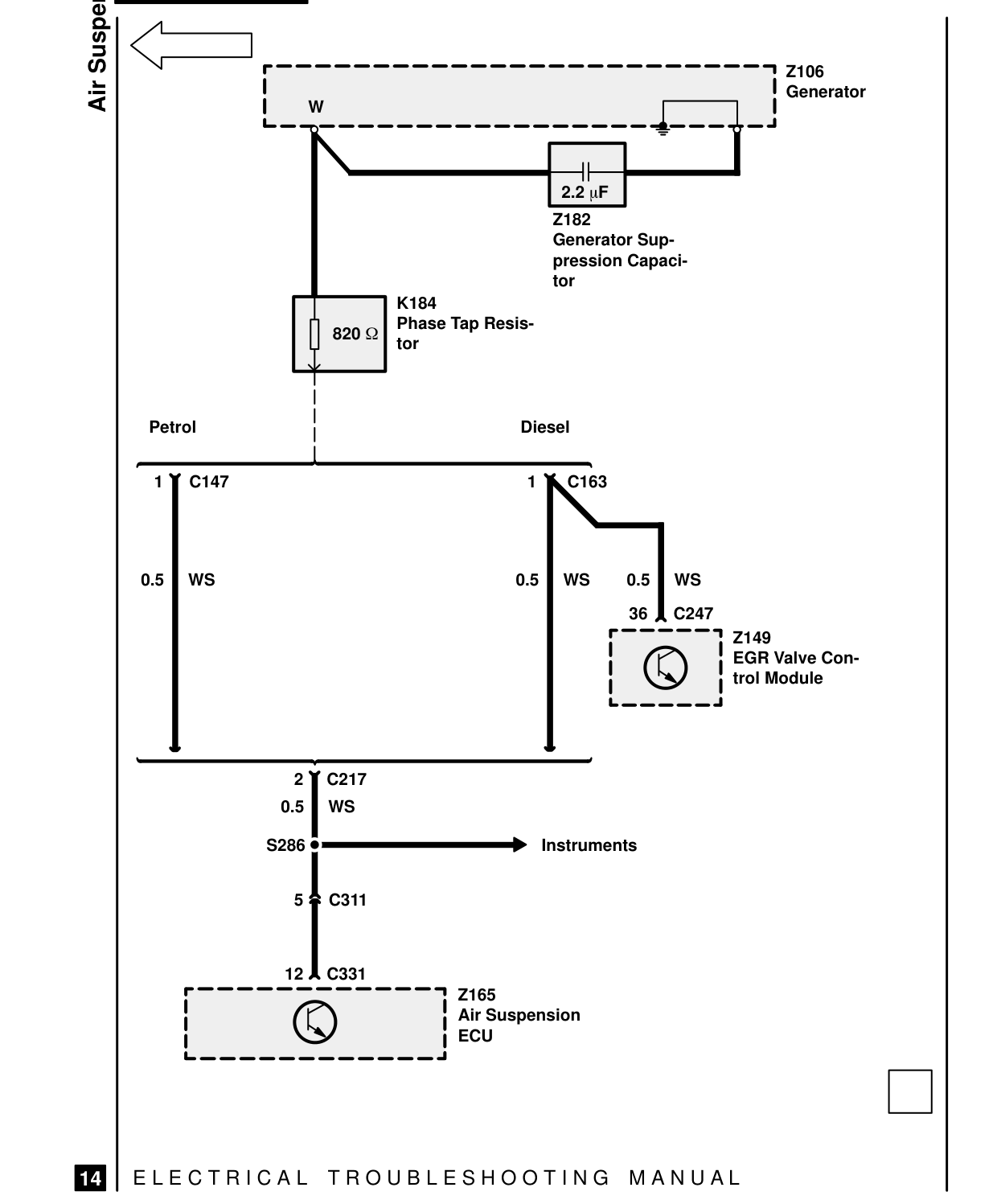

AIR SUSPENSION – CIRCUIT DIAGRAM

Air Suspension W

K184 Phase Tap Resis-

820

tor

Petrol

1 C147

0.5 WS

2 C217 0.5 WS

S286

5 C311

12 C331

E L E C T R I C A L T R O U B L E S H O O T I N G

14

Z106 Generator

2.2  F

Z182 Generator Sup- pression Capaci- tor

Diesel

1 C163

0.5 WS 0.5 WS

36 C247 Z149 EGR Valve Con- trol Module

Instruments

Z165 Air Suspension ECU

M A N U A L

44 Steering & suspension
