Air suspension – circuit diagram

Make

Land Rover

Model

Range Rover Classic Electrical Troubleshooting Manual

Year

1995

Section

Circuit diagram › Air suspension – circuit diagram

Air suspensionAir suspension – circuit diagram

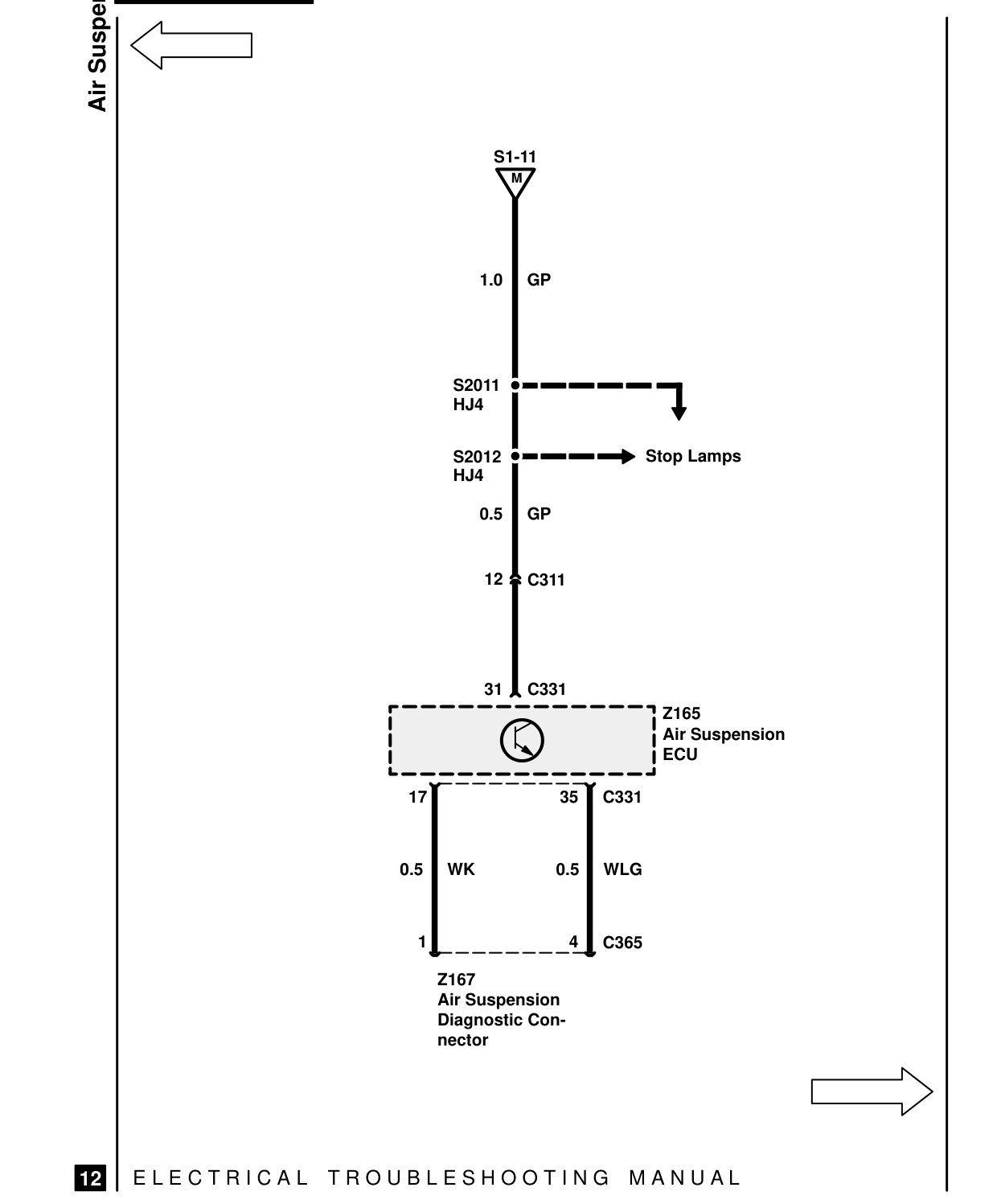

AIR SUSPENSION – CIRCUIT DIAGRAM

Air Suspension

E L E C T R I C A L T R O U B L E S H O O T I N G

12

S1-11 M

1.0 GP

S2011 HJ4

Stop Lamps S2012 HJ4

0.5 GP

12 C311

31 C331 Z165 Air Suspension ECU

17 35 C331

0.5 WK 0.5 WLG

1 4 C365

Z167 Air Suspension Diagnostic Con- nector

M A N U A L

44 Steering & suspension
