PLENUM CHAMBER (page 3 of 6)
- Make
- Land Rover
- Model
- Range Rover Classic
- Section
- REPAIR
19 - FUEL SYSTEM - MFIPLENUM CHAMBER · page 3 of 6
19
FUEL SYSTEM
10
REPAIR

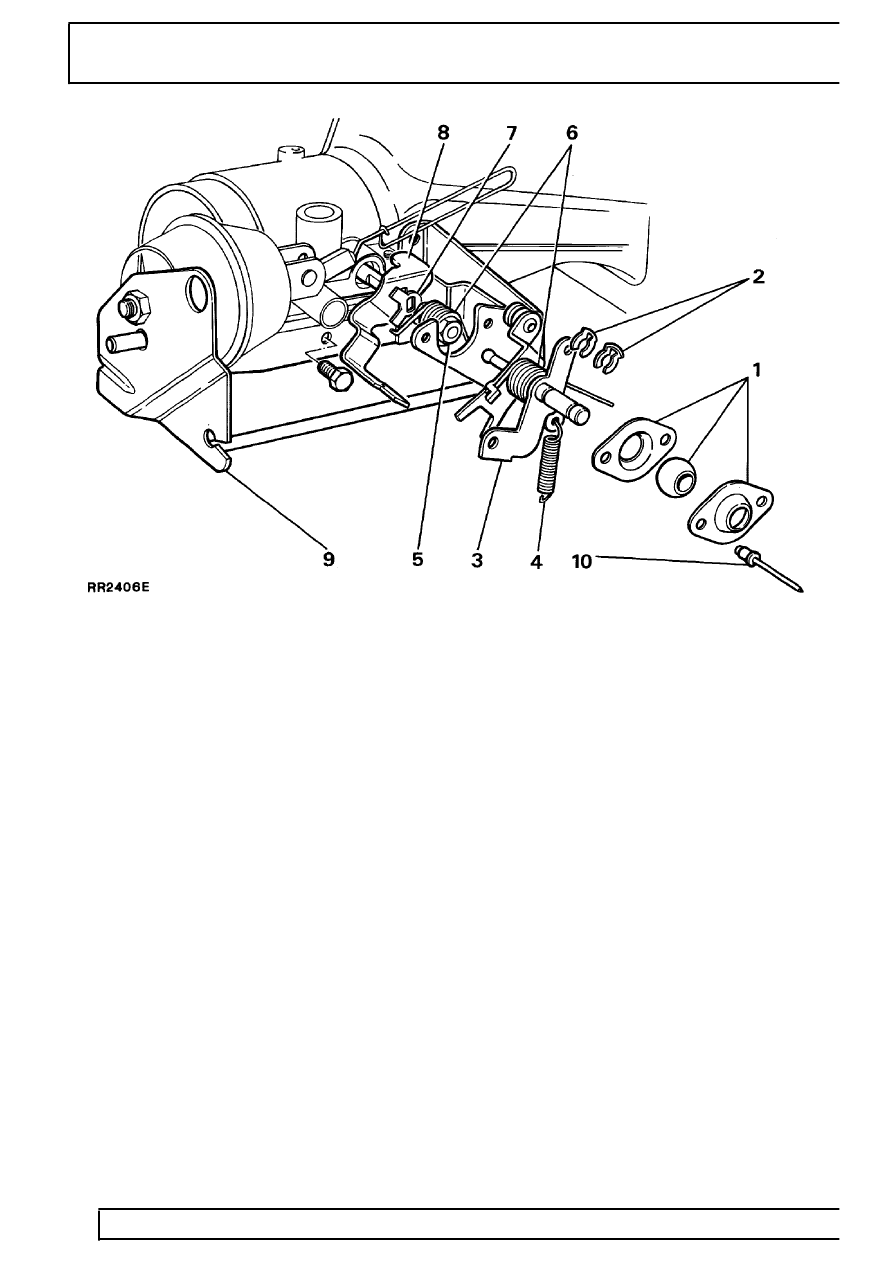

KEY
1. Spherical bush/housing
2. Retaining clips (2)
3. Countershaft assembly
4. Overtravel spring
5. Throttle shaft nut
6. Throttle return spring (2)
7. Tab washer
8. Throttle stop lever
9. Throttle bracket assembly
10. Pop rivets (2)
