Heating and ventilationCable - water valve control · page 2 of 2
Diagram

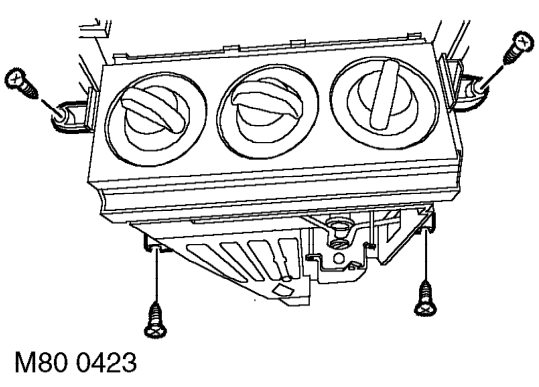

  1. Remove 4 screws securing controls to fascia.
  2. Release controls from fascia.
Release controls from fascia.
  1. Remove screw securing cable clamp to controls and collect clamp.

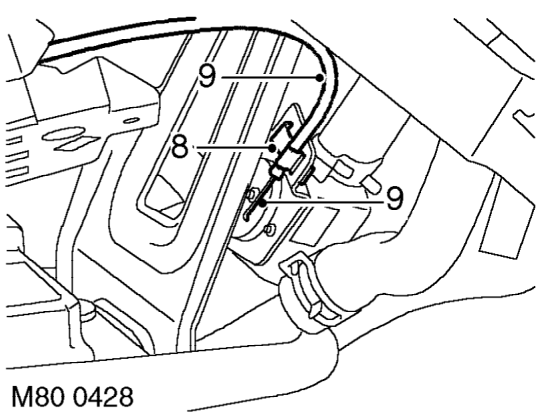

  2. Release cable from controls.
Release cable from controls.

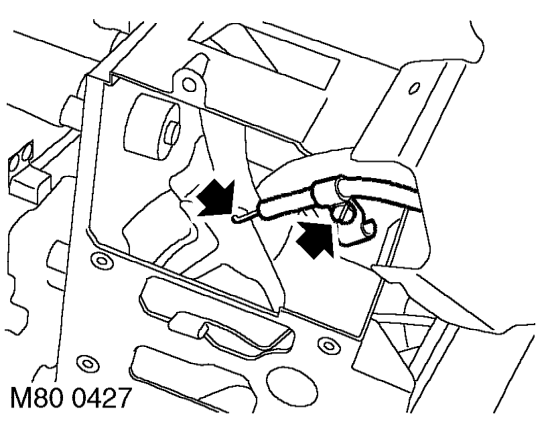

  1. Remove clip securing cable outer to heater valve.
  2. Release cable from valve and remove cable.

Refit

  1. Engage cable to heater valve.
  2. Engage cable to heater controls and secure cable clamp.
  3. Turn heater control to ’COLD’ and heater valve lever fully clockwise.
  4. Secure outer cable to valve with clip.
  5. Position controls to fascia and secure with screws.
  6. Position alarm ECU support plate and secure with screws.
  7. Position alarm ECU to heater control unit, fit and tighten nuts to 4 Nm.
  8. Fit front console. See BODY, Interior trim components.
