G8 V8-6.0L (2009)

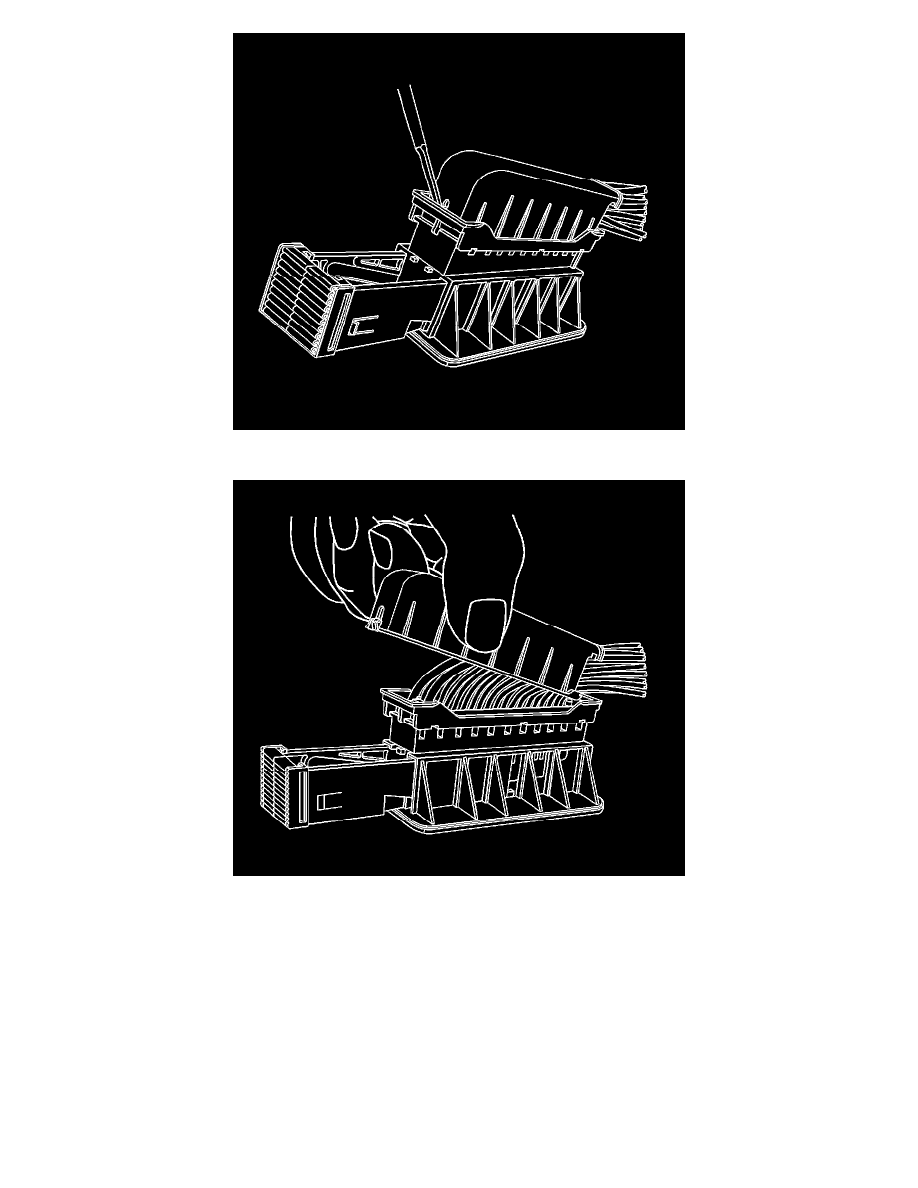

5. Using terminal release tool J 38125-11A or equivalent, release the connector wire dress cover locking tab.
6. With the lock tab released, lift the connector wire dress cover from the connector body.
