Cruise ControlDiagnostic Aids · page 88 of 131

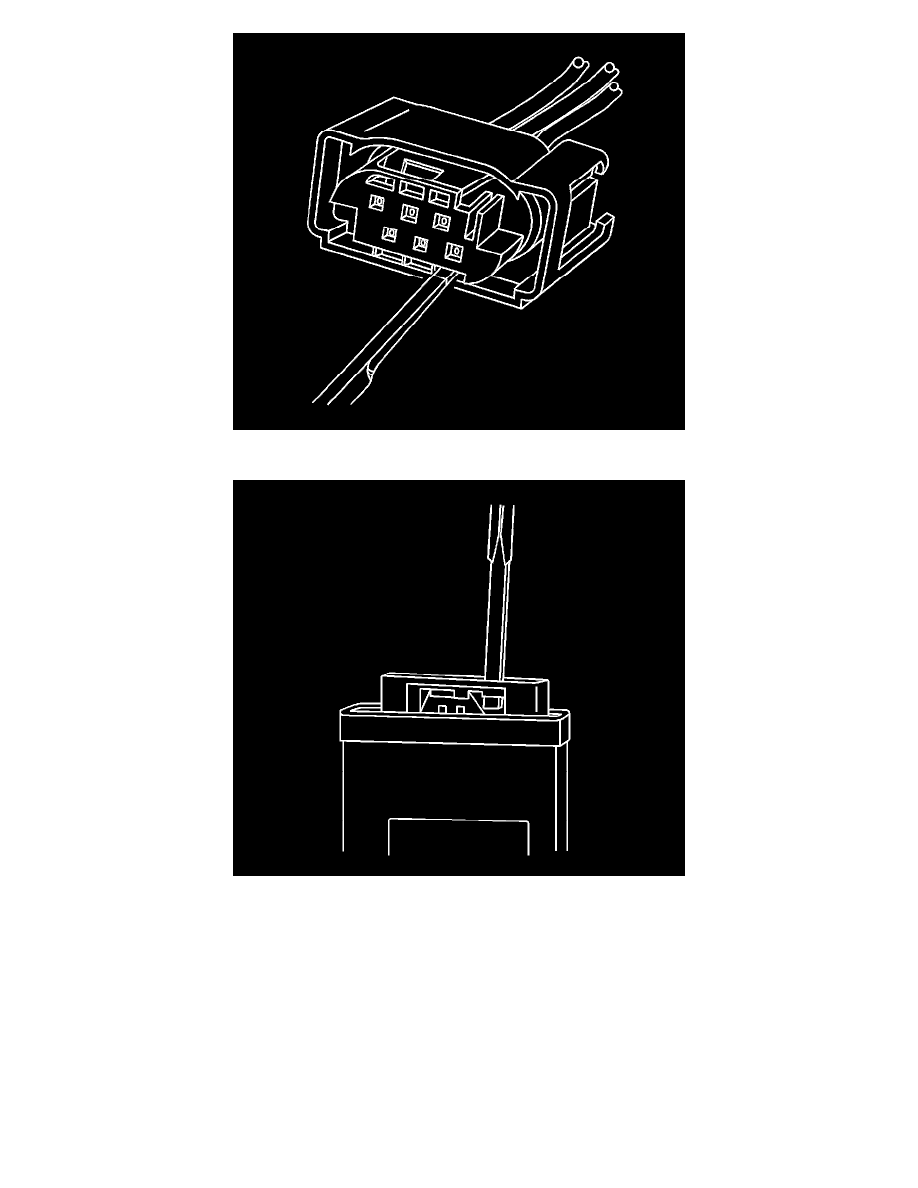

2. Insert the J 38125-11A tool into the cavity on the lower right hand face of the connector until the terminal release tang access panel slides over.
3. Ensure that the terminal release tang access panel is in the correct location to access the terminals.
4. Push the wire side of the terminal that is being removed toward the connector and hold it in position.
