Oil pressure switch (page 2 of 2)

6. Remove starter motor. See ELECTRICAL, Repairs.

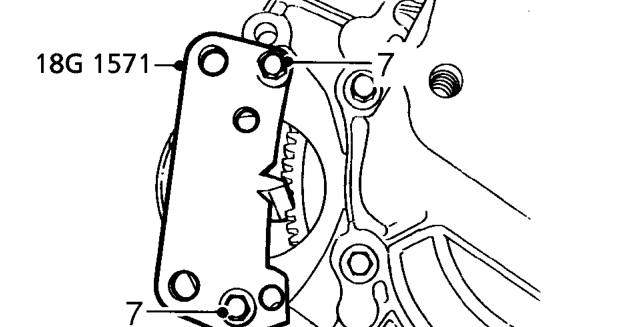

7. Position flywheel locking tool 18G 1571 to flywheel and secure with 2 starter motor bolts.
8. Remove auxiliary drive belt. See ELECTRICAL, Repairs.

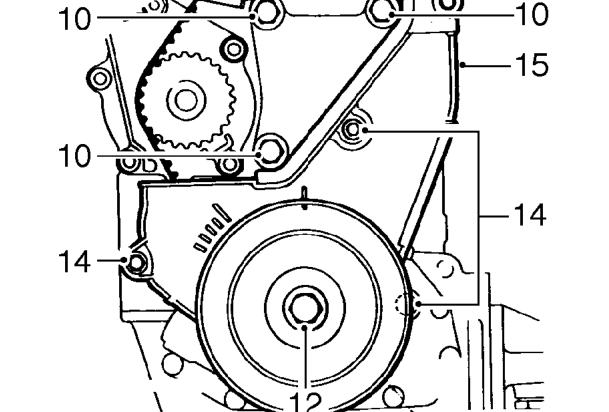

9. Remove engine RH mounting. See this section.

10. Remove 3 bolts securing engine RH mounting bracket to engine.
11. Carefully raise engine slightly to remove engine mounting bracket.
12. Remove crankshaft pulley bolt and washer.
13. Remove crankshaft pulley.
14. Remove 3 bolts securing timing belt lower cover.

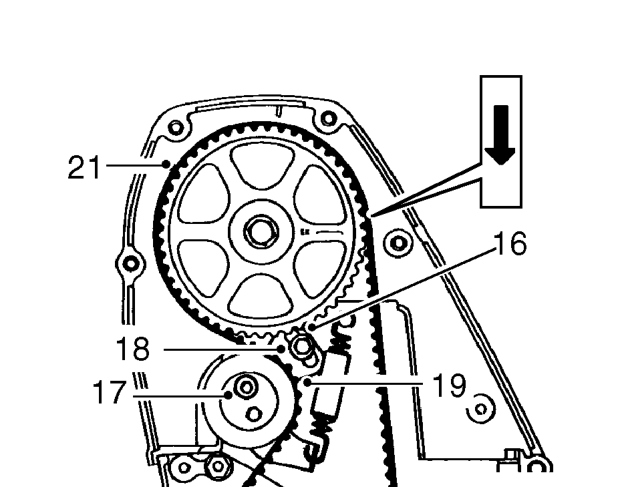

15. Remove lower cover and rubber seal.

16. If camshaft timing belt is to be re-used, mark position of tensioner backplate to cylinder head for belt tensioning reference. Mark direction of rotation of belt using chalk.₁
17. Loosen tensioner pulley Allen bolt₁/₂ turn.
18. Loosen tensioner backplate screw /₂ turn.
19. Push tensioner pulley down to fully OFF position.
20. Tighten backplate bolt to 10 Nm.
21. Ease timing belt from gears and remove.

CAUTION: Ease timing belt off gears using fingers only. Metal levers may damage the belt and gears.

22. Slacken tensioner backplate bolt and ensure tensioner moves freely through its adjustment range and returns under spring tension.
23. Push tensioner down to OFF position and tighten backplate bolt to 10 Nm.
