Rover 200 Workshop Manual (1995-1999)15 · Manifold & exhaust systems
15 · Engine

Inlet manifold gasket - ’K16’ (page 2 of 4)

Make
Rover
Model
200 Workshop Manual
Year
1995–1999
Section
Repairs
Manifold & exhaust systemsInlet manifold gasket - ’K16’ · page 2 of 4

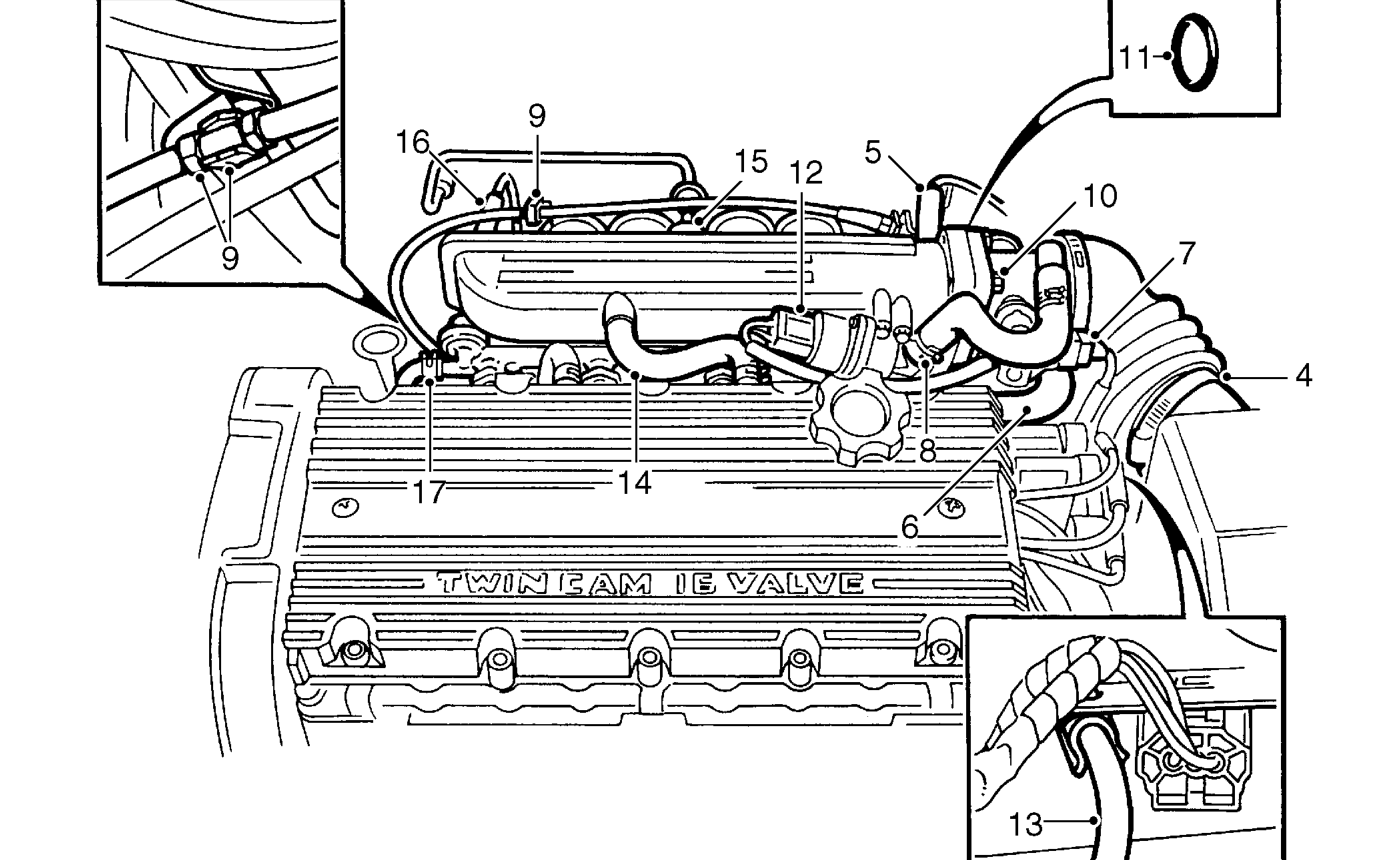

Diagram
  1. Remove clip and disconnect air intake hose from air cleaner.
  2. Release clip and disconnect purge hose from inlet manifold.
  3. Release clip and disconnect breather hose from throttle body.
  4. Disconnect multiplug from TP sensor.
  5. Release clip and disconnect hose from IACV.
  6. Release throttle cable from clip on manifold.
  7. Remove 4 bolts securing throttle body to inlet manifold, remove throttle body and place aside.
  8. Remove and discard ’O’ ring.
  9. Disconnect multiplug from IACV.
  10. Release distributor h.t. lead from manifold bracket.
  11. Disconnect breather hose from inlet manifold.
  12. Depress plastic collar and disconnect brake servo hose from inlet manifold.
  13. Disconnect ECM vacuum hose from manifold.
  14. Release clip and disconnect fuel return hose from fuel rail.

CAUTION: Plug the connections.
