Inlet manifold gasket - ’K16 with VVC’ (page 2 of 2)

Make
Rover
Model
200 Workshop Manual
Year
1995–1999
Section
Repairs
Manifold & exhaust systemsInlet manifold gasket - ’K16 with VVC’ · page 2 of 2

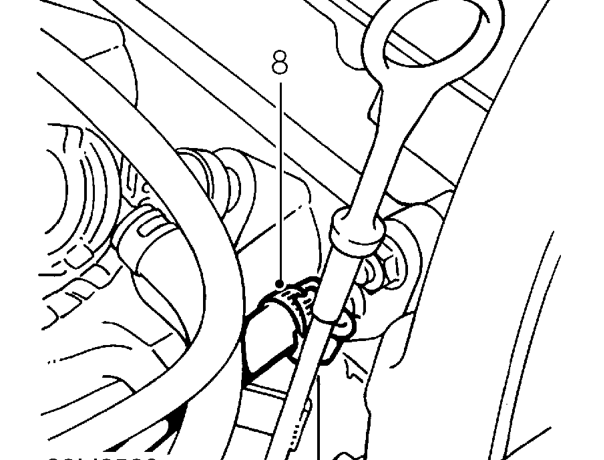

Diagram
  1. Loosen clip and disconnect coolant hose from inlet manifold.

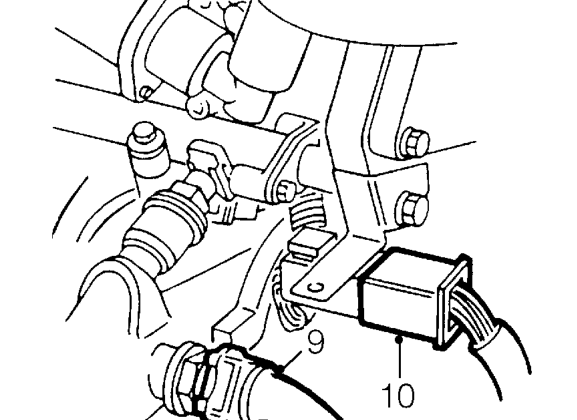

Loosen clip and disconnect coolant hose from inlet manifold.
  1. Disconnect multiplug from IAT sensor.
  2. Disconnect injector harness multiplug from engine harness.
  3. Release injector multiplug from bracket.

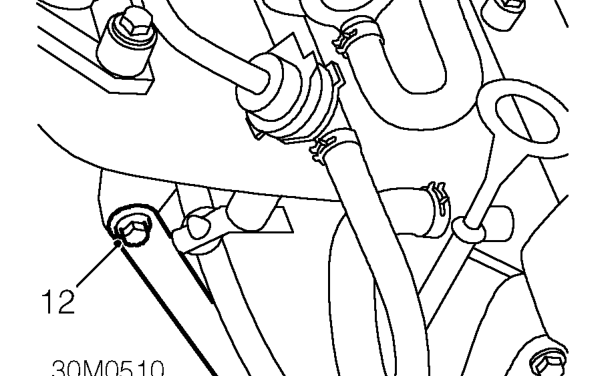

Release injector multiplug from bracket.
  1. Remove bolt securing support stay to inlet manifold.

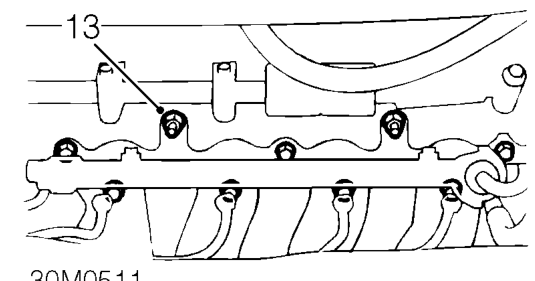

Remove bolt securing support stay to inlet manifold.
  1. Remove 2 nuts and 7 bolts securing inlet manifold to cylinder head.
  2. Remove inlet manifold from cylinder head.
  3. Remove and discard inlet manifold gasket.
