Engine - T SeriesCamshaft front oil seal - exhaust · page 1 of 2

CAMSHAFT FRONT OIL SEAL - EXHAUST

Service repair no - 12.13.07

Remove

  1. Disconnect battery earth lead.
  2. Raise front of vehicle.

WARNING: Support on safety stands.

  1. Remove camshaft timing belt centre cover. See this section.
Camshaft front oil seal - exhaust – Remove camshaft timing belt centre cover. See this section.
  1. Rotate crankshaft anti-clockwise to align timing marks on camshaft gears.

CAUTION: Never use the camshaft gears, gear retaining bolts or timing belt to rotate crankshaft.

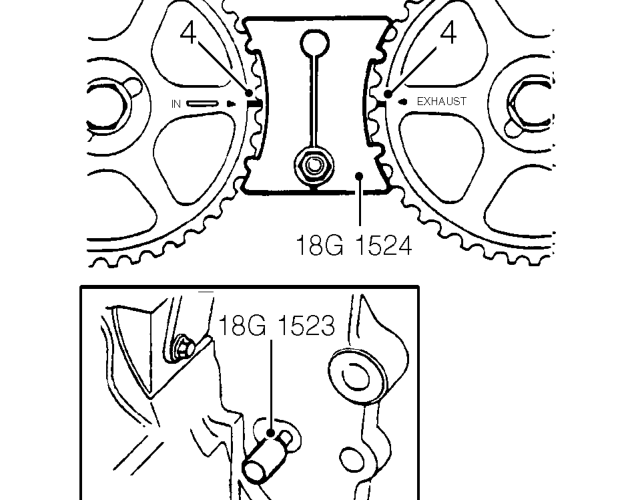

  1. Insert timing pin tool 18G 1523 through hole in gearbox mounting plate and into hole in flywheel.
  2. Fit camshaft locking tool 18G 1524 to camshaft gears, tighten nut to retain tool.
Camshaft front oil seal - exhaust – Fit camshaft locking tool 18G 1524 to camshaft gears, tighten nut to retain tool.

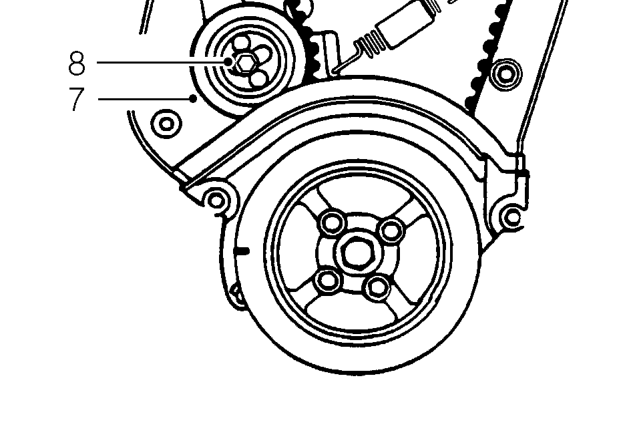

  1. Using a 10mm socket, loosen bolt securing tensioner pulley.
  2. Move tensioner aside to release timing belt tension.
  3. Retighten tensioner pulley bolt to 25 Nm.

CAUTION: Do not exceed the specified torque figure.
