Rover 400 Workshop Manual (1995-2000)08 · Engine - T Series
08 · Engine

Oil pump acoustic cover

Make
Rover
Model
400 Workshop Manual
Year
1995–2000
Section
Repairs › Oil pump acoustic cover
Engine - T SeriesOil pump acoustic cover

OIL PUMP ACOUSTIC COVER

Service repair no - 12.60.88

Remove

  1. Raise front of vehicle.

WARNING: Support on safety stands.

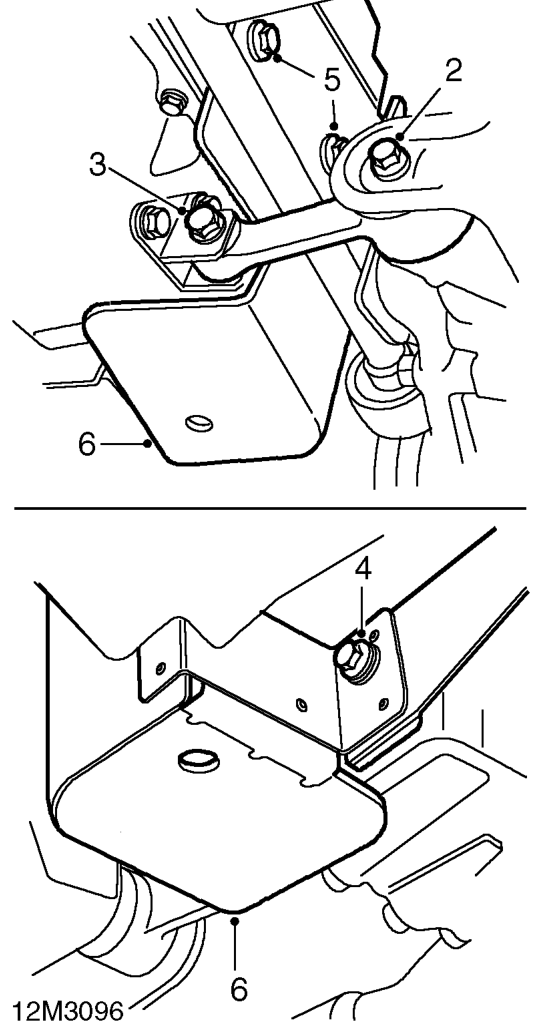

Oil pump acoustic cover – Raise front of vehicle.
  1. Loosen bolt securing lower steady bar to bracket on subframe.
  2. Remove bolt securing steady bar to bracket and move aside.
  3. Remove bolt and collect 2 washers securing acoustic cover to sump.
  4. Remove 2 bolts securing acoustic cover to rear of cylinder block.
  5. Remove acoustic cover.

Refit

  1. Fit acoustic cover to engine and align with bolt holes.
  2. Fit bolt and washers securing acoustic cover to sump.
  3. Fit and tighten 2 bolts securing acoustic cover to rear of cylinder block.
  4. Align lower steady bar to bracket on sump.
  5. Fit bolt securing steady bar to engine and tighten to 45 Nm.
  6. Tighten bolt securing steady bar to subframe to 80 Nm.
  7. Remove stand(s) and lower vehicle.
