Engine steady bar - upper

Refit

1. Position mounting bracket and restraint plate to mounting, fit nut but do not tighten.
2. Fit engine RH mounting to engine, fit bolts and tighten to 105 Nm.
3. Lower engine.
4. Align engine mounting to body.
5. Fit engine mounting restraint bar, fit bolts and tighten to 45 Nm.
6. Align tie bar to engine RH mounting, fit bolt and tighten to 100 Nm.
7. Tighten bolt, tie bar to body to 100 Nm.
8. Tighten nut securing engine mounting to bracket to 80 Nm.
9. Align PAS reservoir to body, fit bolts and tighten to 9 Nm.
10. Remove jack positioned to support engine.
11. Connect battery earth lead.

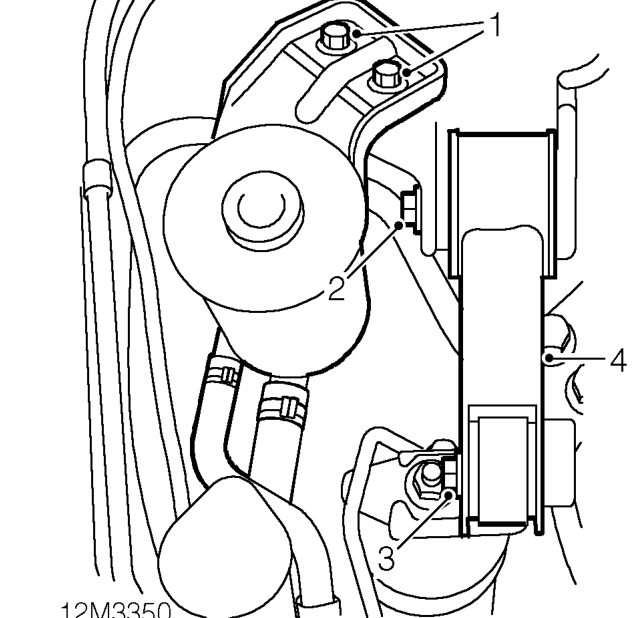

ENGINE STEADY BAR - UPPER

Service repair no - 12.45.16

Remove

1. Remove 2 bolts securing PAS fluid reservoir mounting bracket to body and position aside.
2. Remove through bolt securing steady bar to body.
3. Remove through bolt securing steady bar to engine RH mounting.
4. Remove steady bar.

Refit

1. Position steady bar to body, fit through bolt but DO NOT tighten.
2. Align steady bar to engine RH mounting, fit through bolt and tighten to 100 Nm.
3. Tighten bolt securing steady bar to body to 100 Nm.
4. Align PAS reservoir to body, fit bolts and tighten to 9 Nm.
