ENGINE STEADY BAR - LOWER

Service repair no - 12.45.17

Remove

  1. Disconnect battery earth lead.
  2. Raise front of vehicle.

WARNING: Support on safety stands.

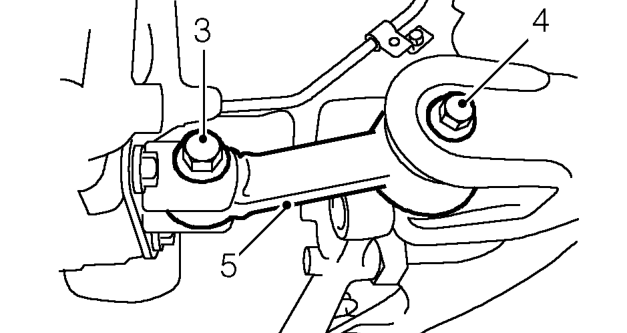

Engine steady bar - lower – Raise front of vehicle.
  1. Remove bolt securing steady bar to engine sump bracket.
  2. Remove bolt securing steady bar to rear beam.
  3. Remove steady bar.

Refit

  1. Clean area of subframe where engine steady bar is fitted.
  2. Position steady bar to rear beam, fit through bolt but DO NOT tighten.
  3. Align steady bar to engine sump bracket, fit though bolt and tighten to 80 Nm.
  4. Tighten bolt securing steady bar to rear beam to 80 Nm.
  5. Remove stand(s) and lower vehicle.
  6. Connect battery earth lead.

FLYWHEEL

Service repair no - 12.53.07

Remove

  1. Remove clutch assembly. See CLUTCH, Repairs.
  2. Remove crankshaft position sensor. See ENGINE MANAGEMENT SYSTEM - MEMS, Repairs.

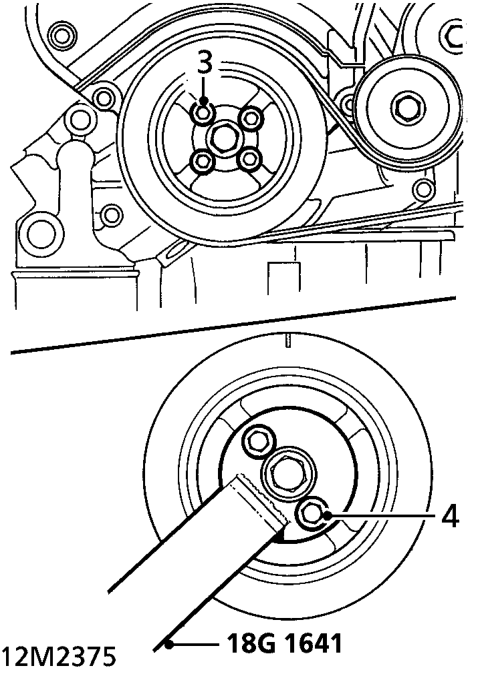

Flywheel – Remove crankshaft position sensor. See ENGINE MANAGEMENT SYSTEM - MEMS, Repairs.
  1. Remove 4 bolts from crankshaft pulley.
  2. Fit tool 18G 1641 to crankshaft pulley, using 2 pulley bolts.

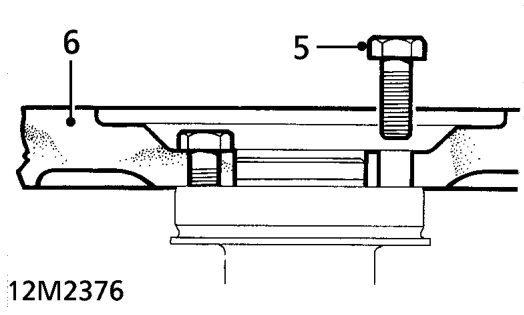

Flywheel – Fit tool 18G 1641 to crankshaft pulley, using 2 pulley bolts.
  1. Remove and discard 6 bolts securing flywheel.
  2. Remove flywheel from crankshaft.
