CAMSHAFT REAR OIL SEAL - EXHAUST

Service repair no - 12.13.08

Remove

  1. Remove air cleaner. See ENGINE MANAGEMENT SYSTEM - MEMS, Repairs.
  2. Position a cloth beneath oil seal to collect any oil spillage.

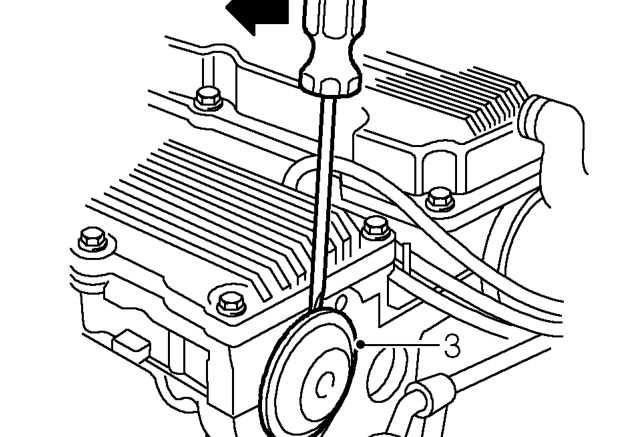

Camshaft rear oil seal - exhaust – Position a cloth beneath oil seal to collect any oil spillage.
  1. Using a suitable lever, remove oil seal.

Refit

  1. Clean camshaft and oil seal housing.
  2. Fit camshaft oil seal.

CAUTION: Use a flat drift positioned across seal to prevent damage when fitting seal.

  1. Remove cloth from beneath seal.
  2. Fit air cleaner. See ENGINE MANAGEMENT SYSTEM - MEMS, Repairs.

CAMSHAFT FRONT OIL SEAL - INLET

Service repair no - 12.13.09

Remove

  1. Disconnect battery earth lead.
  2. Raise front of vehicle.

WARNING: Support on safety stands.

  1. Remove camshaft timing belt centre cover. See this section.
Camshaft front oil seal - inlet – Remove camshaft timing belt centre cover. See this section.

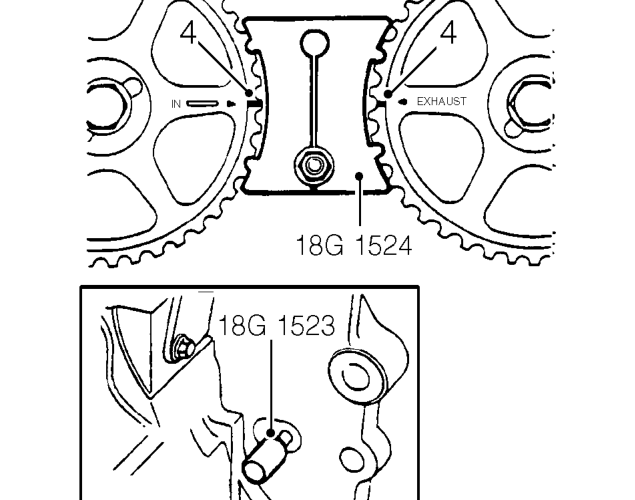

  1. Rotate crankshaft to align marks on camshaft gears.

CAUTION: Never use the camshaft gears, gear retaining bolts or timing belt to rotate crankshaft.

  1. Insert timing pin tool 18G 1523 through hole in gearbox mounting plate and into hole in flywheel.
  2. Fit camshaft locking tool 18G 1524 to camshaft gears, tighten nut to retain tool.
