Engine - T SeriesCamshaft rear oil seal - exhaust · page 2 of 2
Diagram

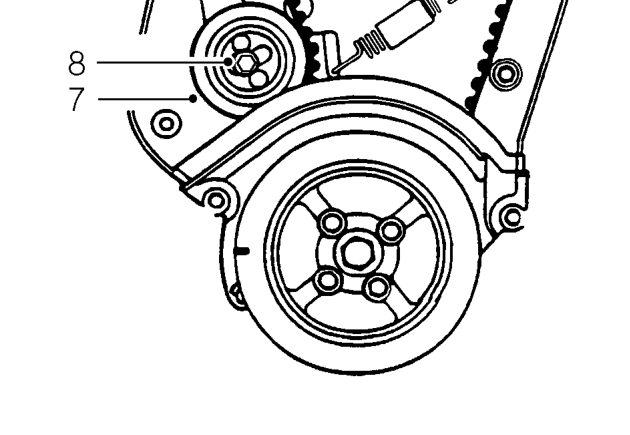

  1. Using a 10 mm socket, loosen bolt securing tensioner pulley.
  2. Move tensioner aside to release timing belt tension.
  3. Retighten tensioner pulley bolt to 25 Nm.

CAUTION: Do not exceed the specified torque figure.

Retighten tensioner pulley bolt to 25 Nm.

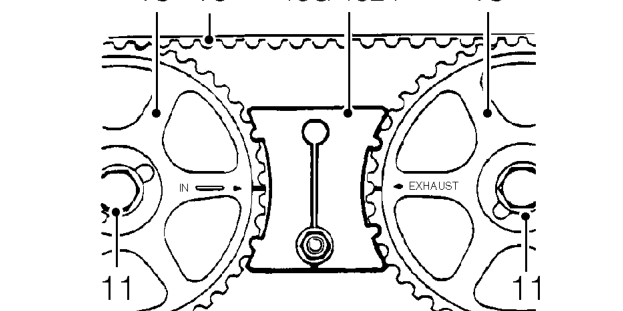

  1. Release timing belt from camshaft gears.

CAUTION: Ease timing belt off gears using fingers only. Metal levers may damage the belt and gears. Do not rotate crankshaft with timing belt removed and cylinder head fitted.

  1. Remove 2 bolts securing camshaft gears to camshafts.
  2. Remove tool 18G 1524 .
  3. Remove camshaft gears, noting the ’IN’ and ’EX’ identification marks.
Remove camshaft gears, noting the ’IN’ and ’EX’ identification marks.

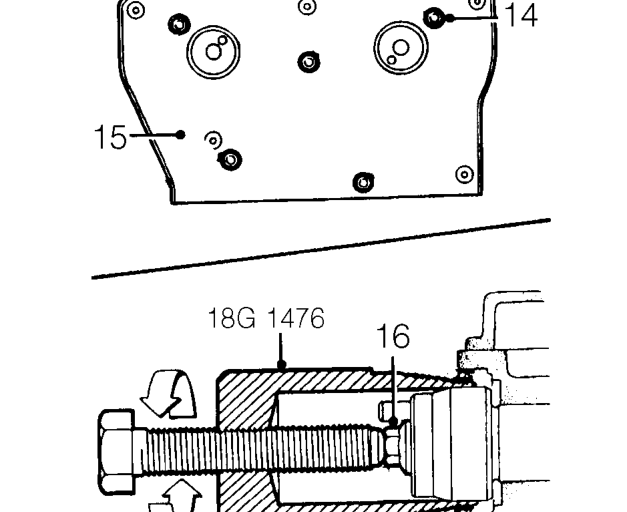

  1. Remove 5 bolts securing timing belt rear upper cover.
  2. Remove timing belt rear upper cover.

NOTE: Raise engine sufficiently on jack to enable fitment/removal of service tools.

  1. Temporarily fit camshaft gear centre bolt and remove seal using tool 18G 1476.
  2. Remove camshaft gear centre bolt.
