Engine - T SeriesCylinder head gasket · page 1 of 3
Diagram

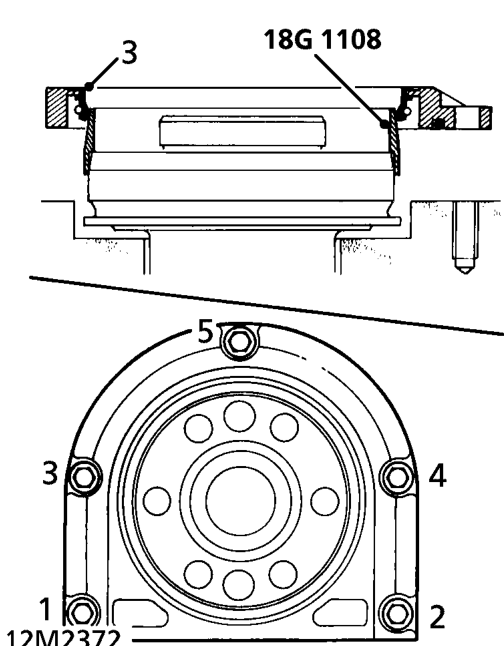

  1. Fit tool 18G 1108 over crankshaft boss and fit oil seal.
  2. Remove tool.
  3. Working in the sequence shown, fit and tighten seal housing bolts to 10 Nm.
Working in the sequence shown, fit and tighten seal housing bolts to 10 Nm.

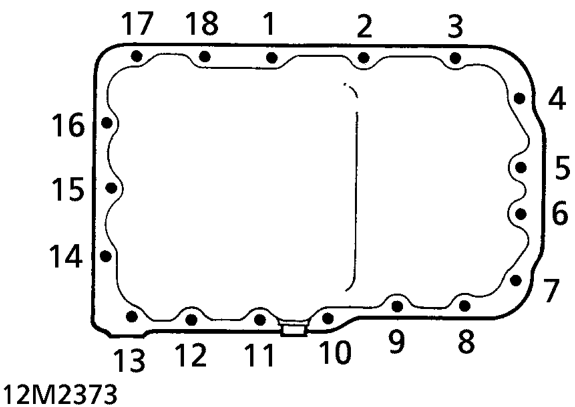

  1. working in the sequence shown, tighten sump bolts to 25 Nm.
  2. Fit flywheel. See this section.
  3. Refill engine with oil. See MAINTENANCEMaintenance.
  4. Run engine.
  5. Check for leakage around sump joint and top-up engine if necessary.

CYLINDER HEAD GASKET

Service repair no - 12.29.02

Remove

  1. Drain cooling system. See COOLING SYSTEM, Adjustments.
  2. Remove air cleaner. See ENGINE MANAGEMENT SYSTEM - MEMS, Repairs.
  3. Remove exhaust manifold. See MANIFOLD & EXHAUST SYSTEMS, Repairs.
  4. Remove camshaft timing belt centre cover. See this section.
Cylinder head gasket – Remove camshaft timing belt centre cover. See this section.
  1. Rotate crankshaft to align timing marks on camshaft gears.

CAUTION: Never use the camshaft gears, gear retaining bolts or timing belt to rotate crankshaft.

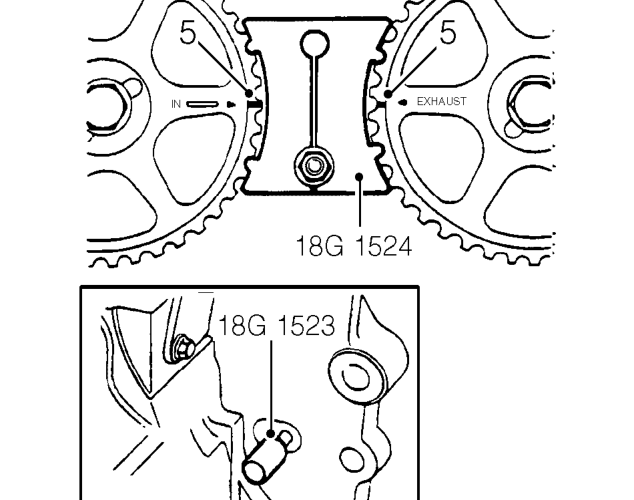

  1. Insert timing pin tool 18G 1523 through hole in gearbox mounting plate and into hole in flywheel.
  2. Fit camshaft locking tool 18G 1524 to camshaft gears, tighten nut to retain tool.
