Engine RH mounting

Refit

1. Position engine LH mounting to body, fit bolts and tighten to 45 Nm.
2. Position mounting bracket to gearbox, fit bolts and tighten to 45 Nm.
3. Raise engine on jack and align mounting to bracket.
4. Fit bolts securing engine LH mounting and tighten to 45 Nm.
5. Remove jack from beneath gearbox.
6. Secure coolant hose to engine LH mounting bracket clip.
7. Position battery tray mounting bracket and connect vacuum hose to cruise control vacuum control unit.
8. Connect multiplugs to dim dip resistor and cruise control vacuum control unit.
9. Position battery tray mounting bracket to fixings, do not tighten at this stage.
10. Position air intake hose to battery tray mounting bracket and secure with bolt.
11. Position battery tray to mounting bracket.
12. Fit bolts and nut securing battery tray to mounting bracket and engine LH mounting.
13. Tighten 2 bolts securing battery tray mounting bracket to body to 9 Nm.
14. Fit air cleaner. See ENGINE MANAGEMENT SYSTEM - MEMS, Repairs.

ENGINE RH MOUNTING

Service repair no - 12.45.12

Remove

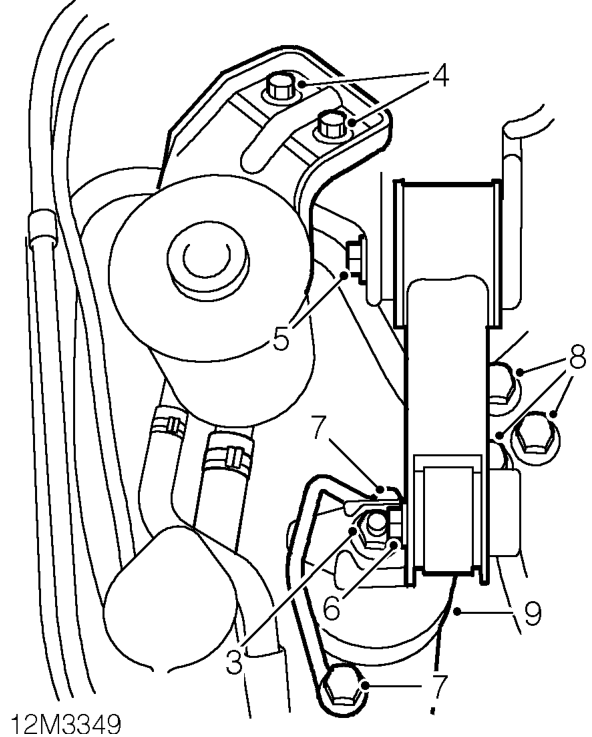

1. Disconnect battery earth lead.
2. Support RH side of engine on trolley jack.

CAUTION: Use a block of wood or hard rubber pad to protect sump.

3. Loosen nut securing engine RH mounting to bracket.
4. Remove 2 bolts securing PAS fluid reservoir mounting bracket to body and position aside.
5. Loosen bolt securing engine mounting tie bar to bracket on body.
6. Remove bolt securing engine mounting tie bar to engine mounting bracket and release tie bar from bracket.
7. Remove 2 bolts securing engine mounting restraint bar to body and remove restraint bar.
8. Remove 3 bolts securing engine mounting to engine.
9. Remove engine RH mounting.
10. Remove nut securing engine RH mounting to bracket, remove mounting and collect restraint plate.
