ENGINE LH MOUNTING

Service repair no - 12.45.11

Remove

  1. Remove air cleaner. See ENGINE MANAGEMENT SYSTEM - MEMS, Repairs.

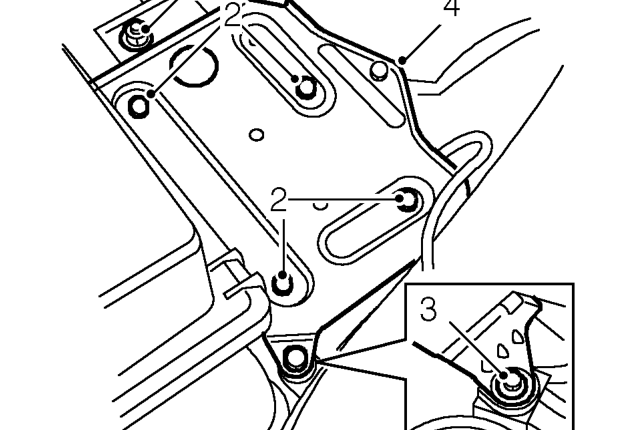

Engine lh mounting – Remove air cleaner. See ENGINE MANAGEMENT SYSTEM - MEMS, Repairs.
  1. Remove 4 bolts and nut securing battery tray to mounting bracket and engine LH mounting.
  2. Remove bolt securing air intake hose to battery tray mounting bracket.
  3. Remove battery tray.

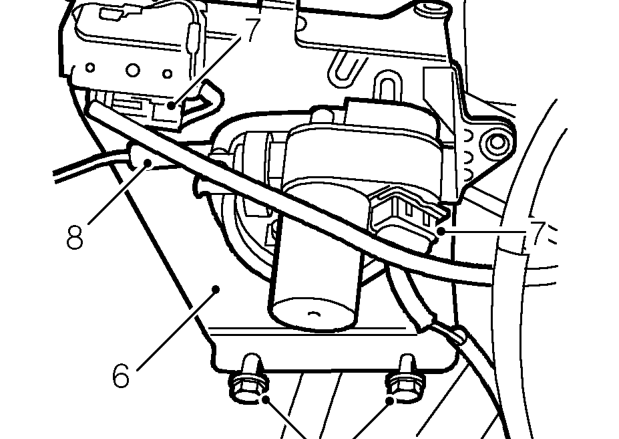

Engine lh mounting – Remove battery tray.
  1. Loosen 2 bolts securing battery tray mounting bracket to body.
  2. Release battery tray mounting bracket from fixings.
  3. Disconnect multiplugs from dim dip resistor and cruise control vacuum control unit.
  4. Release vacuum hose from cruise control vacuum control unit and remove battery tray mounting bracket assembly.
  5. Release coolant hose from engine LH mounting bracket clip.
  6. Support gearbox with jack.

CAUTION: Use a wooden block or hard rubber pad on jack to prevent damaging sump.

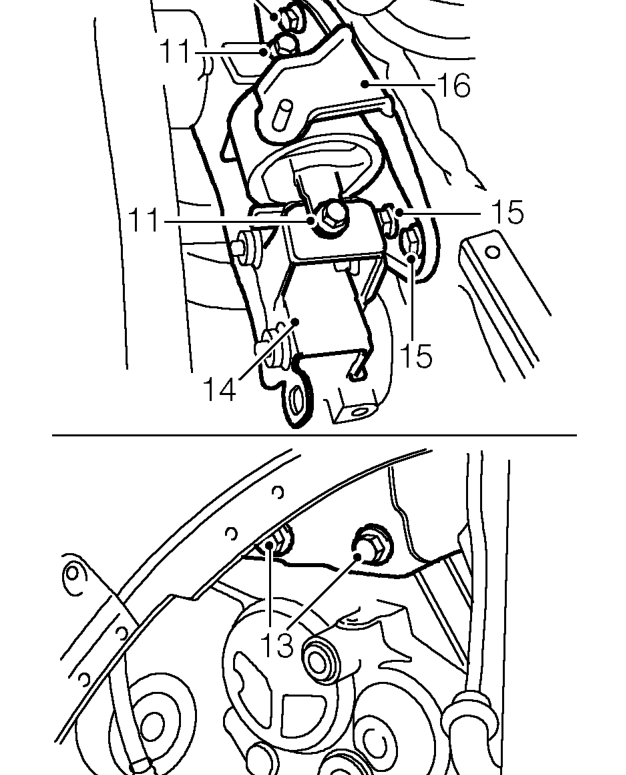

Engine lh mounting – Support gearbox with jack.
  1. Remove 2 bolts securing engine LH mounting to bracket.
  2. Lower engine on jack.
  3. Remove 2 bolts securing bracket to gearbox.
  4. Remove bracket from gearbox.
  5. Remove 4 bolts securing engine LH mounting to body.
  6. Remove engine LH mounting.
