CAMSHAFT TIMING BELT LOWER COVER

Service repair no - 12.65.43

Remove

  1. Remove camshaft timing belt centre cover. See this section.
  2. Remove crankshaft front pulley. See this section.

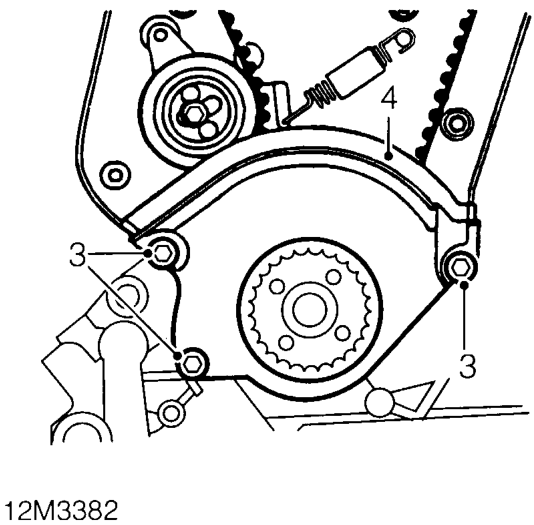

Camshaft timing belt lower cover – Remove crankshaft front pulley. See this section.
  1. Remove 3 bolts securing camshaft timing belt lower cover to engine.
  2. Remove lower cover.

Refit

  1. Clean camshaft timing belt lower cover.
  2. Fit timing belt lower cover to engine.
  3. Fit bolts securing lower cover to engine and tighten to 5 Nm.
  4. Fit crankshaft front pulley. See this section.
  5. Fit camshaft timing belt centre cover. See this section.
