Cylinder head gasket (page 2 of 3)

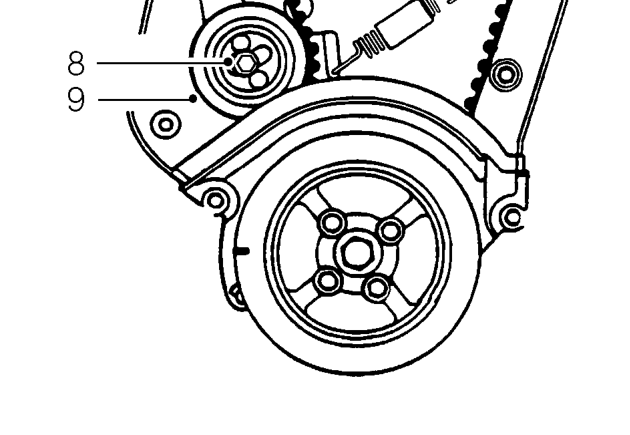

8. Using a 10 mm socket, loosen bolt securing tensioner pulley.
9. Move tensioner aside to release timing belt tension.
10. Retighten tensioner pulley bolt to 25 Nm.

CAUTION: Do not exceed the specified torque figure.

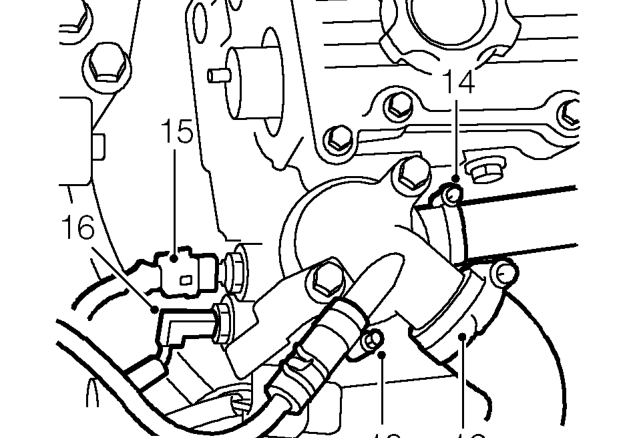

11. Release camshaft timing belt from camshaft gears.

CAUTION: Ease timing belt off gears using fingers only. Metal levers may damage the belt and gears. Do not rotate crankshaft with timing belt removed and cylinder head fitted.

12. Loosen clip and disconnect radiator top hose from thermostat housing.
13. Loosen clip and disconnect coolant expansion tank return hose from thermostat housing.
14. Loosen clip and disconnect engine coolant rail hose from thermostat housing.
15. Disconnect multiplug from ECT sensor.
16. Disconnect Lucar from coolant temperature gauge sensor.

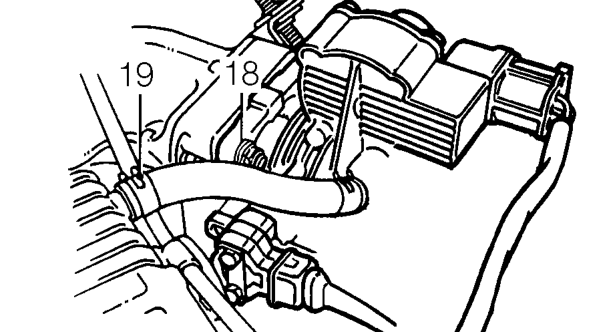

17. Release evaporative emission canister from mounting bracket.

18. Remove 4 nuts securing throttle housing to inlet manifold.
19. Release clip securing breather hose to camshaft cover, release hose from throttle housing and position housing aside.
20. Release h.t. leads from cylinder head support clip.
