Rover 400 Workshop Manual (1995-2000)22 · Steering
22 · Steering & suspension

Steering column assembly (page 2 of 3)

Make
Rover
Model
400 Workshop Manual
Year
1995–2000
Section
Repairs
SteeringSteering column assembly · page 2 of 3
Diagram

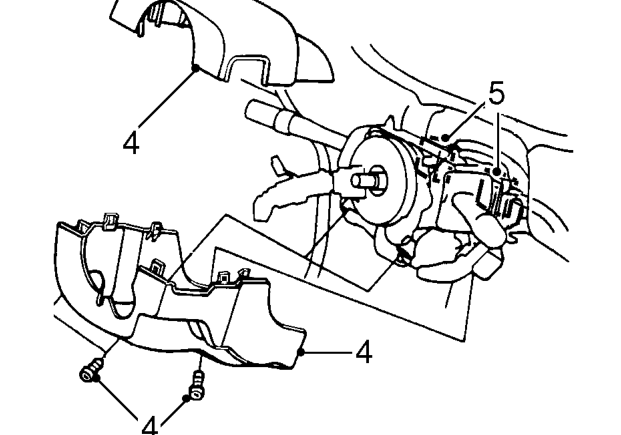

  1. Remove 3 screws, remove column lower and upper covers.
  2. Disconnect 2 multiplugs from combined lighting and wiper switches.
Disconnect 2 multiplugs from combined lighting and wiper switches.

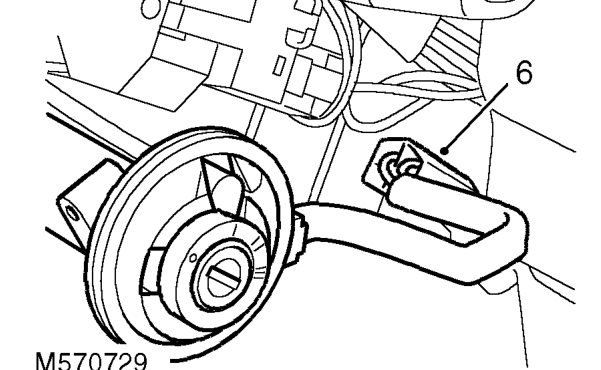

  1. 97.5MY on: Disconnect multiplug from passive coil.
97.5MY on: Disconnect multiplug from passive coil.

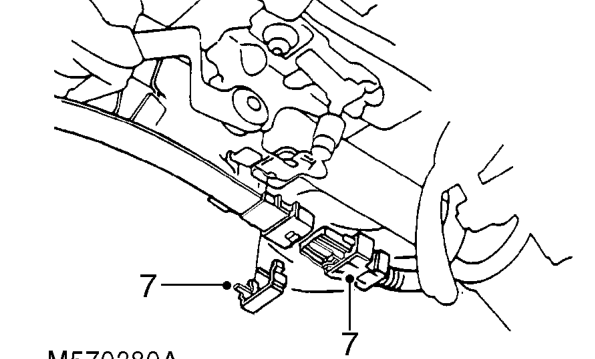

  1. ’D’ series: Release connector and disconnect SRS rotary coupler from SRS main harness connector.
’D’ series: Release connector and disconnect SRS rotary coupler from SRS main harness conn

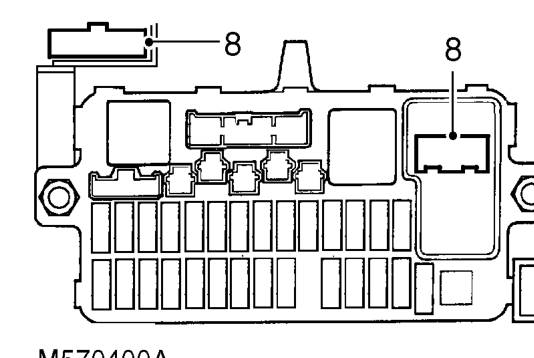

  1. Disconnect 2 starter switch multiplugs from fusebox.
Disconnect 2 starter switch multiplugs from fusebox.

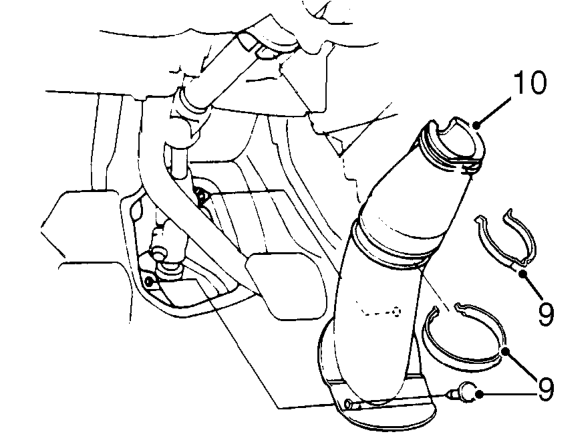

  1. Remove 2 clips and stud securing joint cover.
  2. Remove joint cover from steering column.
